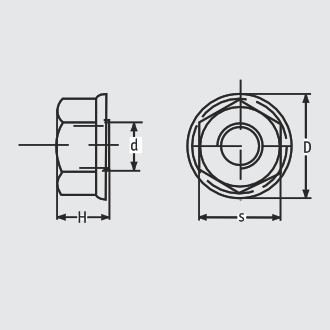

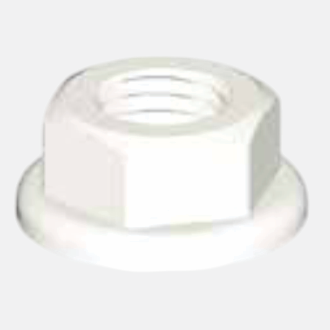

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||
|---|---|---|---|---|---|
| d | D | H | S | ||
| 43534 | M3 x 0.5 | 7.0 | 3.2 | 5.5 | 1000 |
| 43535 | M4 x 0.7 | 9.4 | 4.1 | 7.0 | 1000 |
| 43536 | M5 x 0.8 | 11.0 | 5.1 | 8.0 | 1000 |
| 43537 | M6 x 1.0 | 13.0 | 6.0 | 10.0 | 1000 |
| 43538 | M8 x 1.25 | 17.0 | 8.0 | 13.0 | 1000 |
| 1284116 | M10 x 1.5 | 22.0 | 9.5 | 16.0 | 1000 |
| 1284114 | M12 x 1.75 | 28.0 | 14.4 | 18.7 | 500 |
| 1284115 | M16 x 2.0 | 36.0 | 15.8 | 23.7 | 100 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
