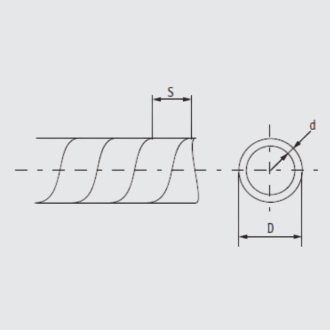

| DISCPRITION | PART NUMBER | OD (d) | ID (d) | S | THICKNESS | CABLE BUNDLE DIA (mm) | MOQ IN MTRS |
|---|---|---|---|---|---|---|---|

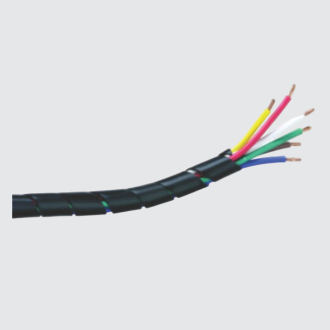

| Spiral Wrap | RESW-25 | 4.0 | 2.8 | 6.0 | 0.6 | 3 to 30 | 100 |
| Spiral Wrap | RESW-12 | 6.0 | 4.4 | 9.0 | 0.8 | 6 to 50 | 100 |
| Spiral Wrap | RESW-16 | 9.0 | 7.0 | 12.0 | 1.0 | 8 to 60 | 100 |
| Spiral Wrap | RESW-20 | 12.0 | 10.0 | 14.0 | 1.0 | 10 to 60 | 50 |
| Spiral Wrap | RESW-04 | 16.0 | 14.0 | 16.0 | 1.2 | 12 to 65 | 50 |
| Spiral Wrap | RESW-06 | 20.0 | 18.0 | 20.0 | 1.5 | 15 to 70 | 50 |
| Spiral Wrap | RESW-09 | 25.0 | 23.0 | 22.0 | 1.5 | 19 to 100 | 50 |
| Spiral Wrap | RESW-40 | 32.0 | 27.0 | 22.0 | 2.0 | 19 to 100 | 50 |
| Spiral Wrap | RESW-32 | 40.0 | 34.6 | 27.0 | 2.0 | 19 to 100 | 50 |
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
