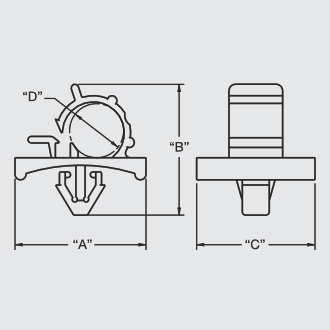

| Part Number | Dimensions (mm) | Std Pack Qty | |||||
|---|---|---|---|---|---|---|---|
| “A” | “B” | “C” | “Holding Ø “D”” | “MountingHole Ø” | Panel Thickness | ||

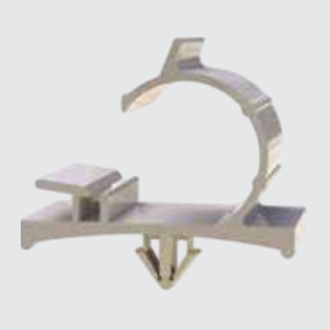

| PKKL-3 | 25.9 | 23.4 | 17.0 | 9.5 | 6.5 | 0.8 – 1.6 | 200 |
| PKKL-3S | 21.1 | 21.0 | 19.1 | 7.8 | 6.5 | 0.8 – 1.6 | 200 |
| PKKL-4 | 30.3 | 32.0 | 19.4 | 13.5 | 6.5 | 0.8 – 1.6 | 100 |
SR 1700/1701
SR 1700 Black PVC
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
