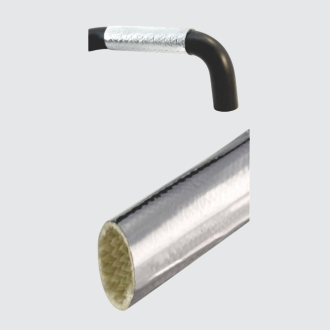

Aluminum Fiberglass Sleeving

TECHNICAL DATA
Material : Fiberglass Filament and Aluminum Foil
Operating temp : -60°C to +260°C (Peak +300°C)
Sizes : 10mm to 50mm
Flammability : Self Extinguishable
Color : White
Shelf life : More than 10 years
Approval : ROHS,Reach, CE

FEATURES

Superior Thermal Properties
Excellent Low Temperature Flexibility
Good Flame Retardant performance
High level Thermal Protection
Excellent protection against radiant heat
Oil Resistance
Halogen FreeHigh Flexibility

CORE APPLICATIONS

Tubing and Hoses
Instrumental Panel Harness
Engine Compartment Harness
A/c Lines
Control Cables
Tubing
Hybrid Vehicles

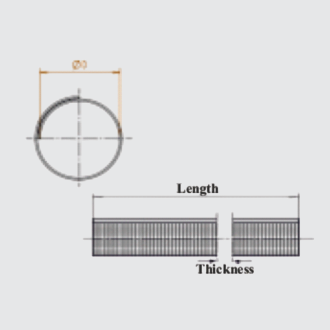

PART NUMBER	NOMINAL SIZE F – d	DIA TOLERANCE	WALL THICKNESS	SPQ
REAFS-20	4.0mm	± 1.0mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-25	5.0mm	± 2.0mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-10	6.0mm	± 0.5mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-12	8.0mm	± 0.5mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-14	10.0mm	± 1.0mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-16	12.0mm	± 1.0mm	0.65mm ± 0.20mm	100 Mtrs
REAFS-4	14.0mm	± 1.0mm	0.65mm ± 0.20mm	50 Mtrs
REAFS-5	16.0mm	± 0.5mm	0.65mm ± 0.20mm	50 Mtrs
REAFS-6	20.0mm	± 0.5mm	0.65mm ± 0.20mm	50 Mtrs
REAFS-8	25.0mm	± 0.5mm	0.65mm ± 0.20mm	50 Mtrs
