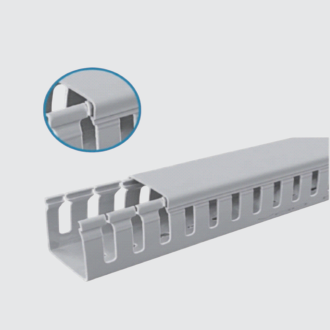

PVC Wiring Duct – Type

Technical Data

Material:Rigid Polyvinylchloride (PVC)
Tensile Strength:320 kg/cm2
Working Temp: -30°C to +60°C
Size:6mm to 65mm
Flammamility:UL94 V0
Standard Length:1 Mtr & 2 Mtr
Color:Grey, White, Black (Other Colors are available on request)
Approval:CE, ROHS, REACH, FRLS

Mounting Hole as per DIN Standard
Snap Fit Cover
Bur Free Edges
Non Brittle

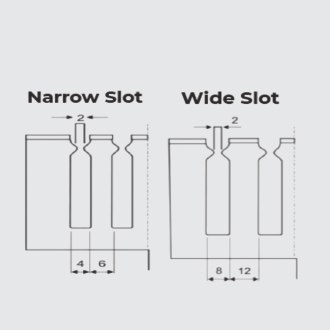

Wide & Narrow Slot
Availabe in Solid wall (Unslotted)

Formula for Calculating Fill Capacity

PART NUMBER	Finger Slot	Size(Height x Width)	Height(mm)	Width(mm)	MOQ Packing Qty (Mtr)
REWDN-15X15-A	Narrow	15×15	15	15	250
REWDW-15X15-A	Wide	15×15	15	15	250
REWDN-25X25-A	Narrow	25×25	25	25	120
REWDW-25X25-A	Wide	25×25	25	25	120
REWDN-30X25-A	Narrow	30×25	30	25	120
REWDW-30X25-A	Wide	30×25	30	25	120
REWDN-45X25-A	Narrow	45×25	45	25	120
REWDW-45X25-A	Wide	45×25	45	25	120
REWDN-45X45-A	Narrow	45×45	45	45	70
REWDW-45X45-A	Wide	45×45	45	45	70
REWDN-45X60-A	Narrow	45×60	45	60	40
REWDW-45X60-A	Wide	45×60	45	60	40
REWDN-60X25-A	Narrow	60×25	60	25	90
REWDW-60X25-A	Wide	60×25	60	25	90
REWDN-60X60-A	Narrow	60×60	60	60	40
REWDW-60X60-A	Wide	60×60	60	60	40
REWDN-75X25-A	Narrow	75×25	75	25	70
REWDW-75X25-A	Wide	75×25	75	25	70
REWDN-75X45-A	Narrow	75×45	75	45	44
REWDW-75X45-A	Wide	75×45	75	45	44
REWDN-75X60-A	Narrow	75×60	75	60	38
REWDW-75X60-A	Wide	75×60	75	60	38
REWDN-75X75-A	Narrow	75×75	75	75	24
REWDW-75X75-A	Wide	75×75	75	75	24
REWDN-100X100-A	Narrow	100×100	100	100	18
REWDW-100X100-A	Wide	100×100	100	100	18
