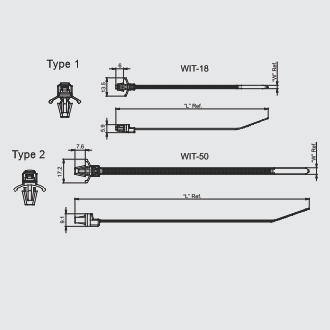

| Part Number | >Type | >”Min. Loop Tensile Strength (Kg)” | Dimensions (mm) | Dimensions (mm) | Std Pack Qty | |||
|---|---|---|---|---|---|---|---|---|
| “W” | “L” | Max. Bundle Ø | Hole Ø | Panel Thickness | ||||
| WIT-18RA-01 | 1 | 8 | 2.5 | 109 | 21 | 4.8 | 1.6 | 1000 |
| WIT-50SA-01 | 1 | 22 | 4.8 | 133 | 23 | 6.4 | 1.6 | 1000 |
| WIT-50SRA-01 | 1 | 22 | 4.8 | 173 | 36 | 6.4 | 1.6 | 1000 |
| WIT-50RA-01 | 1 | 22 | 4.8 | 198 | 43 | 6.4 | 1.6 | 500 |
| WIT-50SA-1-01 | 2 | 22 | 4.8 | 133 | 23 | 6.4-6.8 | 0.8-2 | 1000 |
| WIT-50SRA-1-01 | 2 | 22 | 4.8 | 173 | 36 | 6.4-6.8 | 0.8-2 | 1000 |
| WIT-50RA-1-01 | 2 | 22 | 4.8 | 198 | 43 | 6.4-6.8 | 0.8-2 | 500 |
| WIT-30R1A-4-01 | 3 | 13.6 | 3.2 | 133 | 28 | 3.95-4.05 | 0.8-2 | 1000 |
| WIT-30R3A-4-01 | 4 | 13.6 | 3.6 | 133 | 26 | 5.12-5.28 | 1.0-2.8 | 1000 |
| WIT-30R3A-5-01 | 4 | 13.6 | 3.6 | 153 | 32 | 5.12-5.28 | 1.0-2.8 | 1000 |
Standard Cable Ties
SR 1785
Nylon 6.6
- Lock to prevent accidental removal
- Flammability rating: UL94 V2
