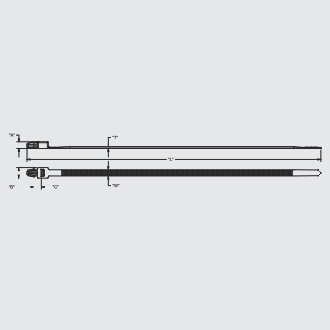

| PART NUMBER | MIN. LOOP TENSILE STRENGTH (KG) | DIMENSIONS (mm) | STD PACK QTY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ‘W’ | ‘L’ | ‘T’ | Max. Bundle Ø | ‘A’ | ‘B’ | ‘C’ | Hole Ø | PANEL THICKNESS | |||

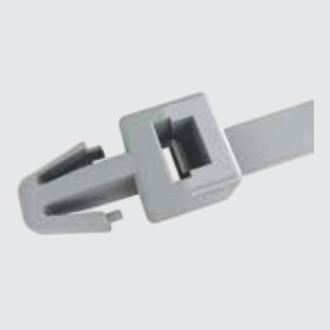

| WIT-50RLA-M | 22 | 4.8 | 225 | 1.3 | 50.8 | 5.1 | 8.1 | 5.4 | 4.8±0.08 | 3.2 | 1000 |
| WIT-50RLA-1 | 22 | 4.8 | 135 | 1.3 | 25.4 | 6.5 | 8.1 | 6 | 6.35±0.08 | 3.2 | 1000 |
| WIT-50RLA-2 | 22 | 4.8 | 170 | 1.3 | 38.1 | 6.5 | 8.1 | 6 | 6.35±0.08 | 3.2 | 1000 |
| WIT-50RLA-3 | 22 | 4.8 | 200 | 1.3 | 44.5 | 6.5 | 8.1 | 6 | 6.35±0.08 | 3.2 | 1000 |
| WIT-50RLA-4 | 22 | 4.8 | 130 | 1.3 | 25.4 | 5.1 | 8.1 | 5.4 | 4.7±0.05 | 2.36 | 1000 |
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
Material : Brass Nickel-Plated
Lamellar Insert : PA 6
Sealing Ring :CR
Protection Class : NBR-Oz
Test Standard* : IP66/ IP68 – 5 bar/ IP69k
Temperature : UL 514B
Strain Relief : DIN EN 62444 Tab. 2A
O-Ring : -30 °C to +100 °C
Material : Nylon 6/6 / Brass
OPERATING TEMP : -30°C to +100°C
Thread : PG & Metric
Protection class : IP54 / IP68 (with o-ring)
Color : Black and Grey
Approval : ROHS,CE, REACH,
Properties
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
