| DISCPRITION | PART NUMBER | “OD (D)MM” | “Id MM” | “WT (MM)” | PITCH (MM) | “Hose Range Dia (mm)” | SPQ (MTR) |
|---|---|---|---|---|---|---|---|

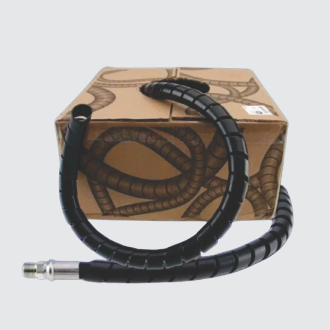

| Spiral Wrap | RESW-12-H-B | 12.0 | 10.0 | 1.0 | 16.0 | 12 to 15 | 50 |
| Spiral Wrap | RESW-15-H-B | 15.0 | 12.6 | 1.2 | 20.0 | 15 to 20 | 50 |
| Spiral Wrap | RESW-19-H-B | 19.0 | 16.0 | 1.5 | 22.0 | 19 to 23 | 50 |
| Spiral Wrap | RESW-25-H-B | 25.0 | 21.0 | 1.5 | 25.0 | 24 to 30 | 50 |
Unf Standrd Threaded PLUGS
BLWF Series
Plug – Yellow Nylon
Gasket – Black Nitrile
- The wide flange design keeps any paint flakes away
from the hole when removed - The nylon material absorbs paint keeping paint flakes
to a minimum - The nitrile gasket seals the plug to the mating surface
for a watertight seal - Can be applied or removed by hand, screwdriver or
with a torque wrench - Nylon is recommended for intermittent temperatures
up to 230°F (110°C) to -40°F (-40°C)
