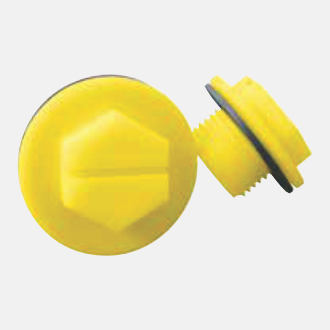

Unf Standard Threaded Plugs

SR 5762
Polypropylene – Yellow / Black

  • Can be applied or removed by hand, hex wrench
    or screwdriver
  • Optional O-ring gives this part a water tight seal
    for superior leakage protection
ENQUIRY!

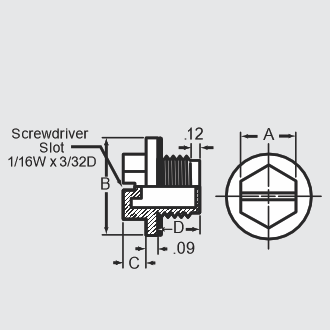

Part Number Part Number w/O-ring To Fit Thread Size Dimensions (mm) Std Pack Qty
A B C D
BL3A BL3L 7⁄16” x 20 10.9 15.8 4.57 9.91 10000
BL4A * BL4B * 1⁄2” x 13 12.7 17.5 7.14 10.41 6000
BL5A BL5K 9⁄16” x 18 12.7 19.1 4.57 10.67 6000
BL7A BL7J 3⁄4” x 16 17.3 23.9 4.83 13.21 3000
BL8A BL8H 7⁄8” x 14 19.1 26.9 6.1 14.22 2100
BL10A BL10I 1 1⁄16” x 12 22.1 33.3 6.35 16.76 1200
BL11A BL11D 1 3⁄16” x 12 25.4 38.1 7.62 17.78 850
BL12A BL12H 1 5⁄16” x 12 27.18 40.89 7.37 17.78 700
BL13A BL13D 1 5⁄8” x 12 28.58 42.75 7.62 19.56 1000
BL14A BL14C 1 7⁄8” x 12 38.1 53.98 7.62 19.05 700
