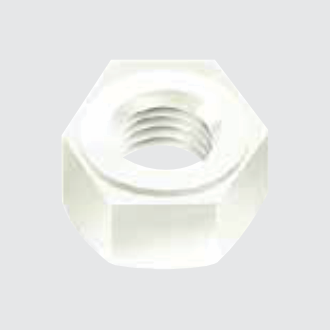

SR 1954
Polypropylene

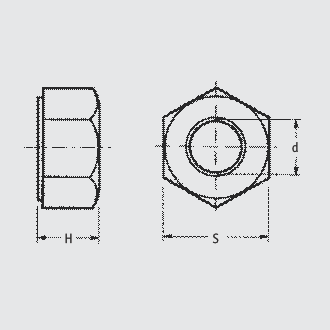

| PART NUMBER | Dimensions (mm) | STD PACK QTY | ||
|---|---|---|---|---|
| d | H | S | ||
| 0030030300VR | M5 x 0.8 | 4.2 | 8.0 | 100 |
| 0030040300VR | M6 x 1.0 | 5.0 | 10.0 | 100 |
| 0030050300VR | M8 x 1.25 | 6.5 | 13.0 | 100 |
| 0030060300VR | M10 x 1.5 | 8.0 | 17.0 | 100 |
| 0030070300VR | M12 x 1.75 | 10.8 | 18.0 | 100 |
| 0030090300VR | M16 x 2.0 | 14.8 | 24.0 | 100 |
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
Material :Polyamide PA6 & Polypropylene
OPERATING TEMP :-40°C +120°C, short term 150°C
Flammability class : UL94 V2, V0
Color : Black (RAL9005) Grey (RAL7031)
Approval : ROHS,CE, REACH, UL
Properties
TECHNICAL DATA
Material : Polyester Multifilament and PET Monofilament -0.22mm
Working Temp : -70°C to +150°C
Size : 5.0mm to 38mm
OVER LAP : 25% and 50%
Color : Black,
Approval : ROHS,Reach, CE
Features :
|
Core Applications :
|
