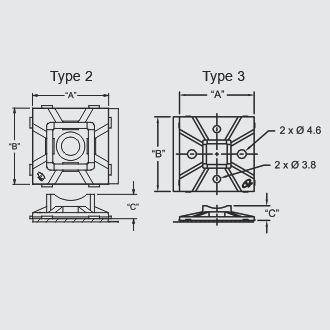

| Part Number | Adhesive | Type | “Max Cable Tie Width Accepted | Dimensions (mm) | Mounting Screw | Std Pack Qty | ||
|---|---|---|---|---|---|---|---|---|
| “A” | “B” | “C” | ||||||
| FTH-5A-RT | Acrylic, RMS-15 | 2 | WIT/WITA -18 and -40 | 19.1 | 19.1 | 6.1 | #6 (M3.5) Flat Head | 1000 |
| FTH-5-01-M | None | 2 | WIT/WITA -18 and -40 | 19.1 | 19.1 | 6.1 | #6 (M3.5) Flat Head | 1000 |
| FTH-7-01-M | None | 2 | WIT/WITA -50 | 25.4 | 25.4 | 7.1 | #8 (M4) Flat Head | 1000 |
| FTH-8A-RT-M | Acrylic, RMS-15 | 3 | WIT/WITA -50 thru 120 | 38.1 | 38.1 | 7.6 | 2 x #8 (M4) or 2 x #6 (M3.5) | 1000 |
| FTH-10A-RT-M | Acrylic, RMS-15 | 3 | WIT/WITA -50 thru 120 | 50.8 | 50.8 | 7.6 | 2 x #8 (M4) or 2 x #6 (M3.5) | 1000 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
