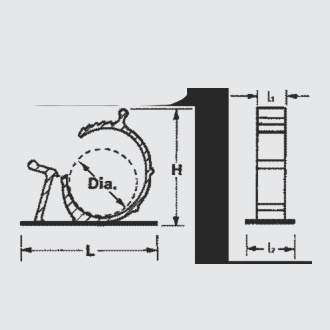

| Part Number | Dia Range (mm) | Dimensions (mm) | Std Pack Qty | |||
|---|---|---|---|---|---|---|
| L | l2 | H | l1 | |||
| 32545 | 14.7 – 19.1 | 42.0 | 25.0 | 43.0 | 12.5 | 100 |
| 32546 | 18.5 – 23.0 | 41.5 | 21.5 | 37.0 | 11.3 | 100 |
Related products
Diaphragm Grommets
SR 1705
Black PVC/TPE, RMS-262
- Thin central film can be pierced to allow a range of different-sized wires to pass through
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
