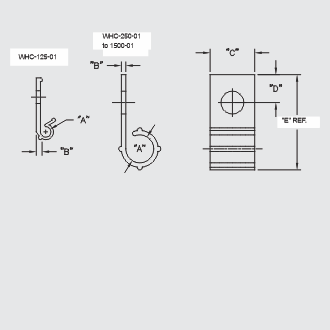

| Part Number | Dimensions (mm) | Std Pack Qty | ||||
|---|---|---|---|---|---|---|
| “A” Ø | “B” | “C” | “D” | “E” | ||
| WHC-125-01 | 3.2 | 1.3 | 8.4 | 5.8 | 19.1 | 1000 |
| WHC-250-01 | 6.4 | 1.0 | 10.2 | 6.4 | 21.1 | 1000 |
| WHC-375-01 | 9.5 | 1.3 | 10.2 | 4.8 | 21.1 | 1000 |
| WHC-500-01 | 12.7 | 1.8 | 10.2 | 6.4 | 29.4 | 1000 |
| WHC-625-01 | 15.9 | 2.0 | 12.7 | 4.8 | 28.6 | 1000 |
| WHC-750-01 | 19.1 | 2.2 | 12.7 | 4.8 | 32.5 | 1000 |
| WHC-1000-01 | 25.4 | 2.2 | 12.7 | 4.8 | 38.9 | 500 |
| WHC-1500-01 | 38.1 | 2.5 | 12.7 | 4.8 | 53.9 | 500 |
Material :Polyamide PA6 & Polypropylene
OPERATING TEMP :-40°C +120°C, short term 150°C
Flammability class : UL94 V2, V0
Color : Black (RAL9005) Grey (RAL7031)
Approval : ROHS,CE, REACH, UL
Properties
SR 1785
Nylon 6.6
SR 1719
Nylon 6.6
FTH-13/FTH-14
Natural Ul94 V2 Nylon 6/6, RMS-01
FTH-28
Natural UL94 V2 Nylon 6/6, RMS-01
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
