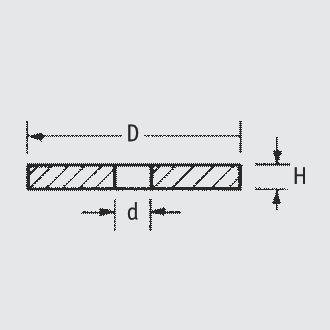

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||
|---|---|---|---|---|---|
| Size | d | D | H | ||
| 041025100001 | M2 | 2.7 | 5.0 | 0.5 | 1000 |
| 041030100001 | M3 | 3.2 | 6.0 | 0.5 | 1000 |
| 041030000001 | M3 | 3.2 | 6.0 | 1.0 | 1000 |
| 041050000001 | M5 | 5.4 | 10.1 | 1.0 | 1000 |
| 041040100001 | M4 | 4.3 | 8.0 | 0.5 | 1000 |
| 1010260000VR | M5 | 5.3 | 9.0 | 1.0 | 1000 |
| 041040000001 | M3 | 4.3 | 8.0 | 1.0 | 1000 |
| 041060000001 | M6 | 6.4 | 11.0 | 1.5 | 1000 |
| 041106000001 | M6 | 6.4 | 11.0 | 1.6 | 1000 |
| 1010360000VR | M8 | 8.4 | 15.0 | 1.6 | 1000 |
| 1010460000VR | M10 | 10.5 | 18.0 | 1.6 | 1000 |
| 032100000001 | M10 | 10.5 | 30.0 | 3.0 | 250 |
| 1010540000VR | M12 | 13.0 | 20.0 | 2.0 | 500 |
| 003120000001 | M12 | 13.0 | 24.0 | 2.5 | 500 |
| 032120000001 | M12 | 13.0 | 40.0 | 3.0 | 250 |
| 1344057 | M14 | 15.0 | 24.0 | 2.5 | 500 |
| 1010700000VR | M16 | 17.0 | 28.0 | 2.5 | 250 |
| 003160000001 | M16 | 17.0 | 30.0 | 3.0 | 250 |
| 1010750000VR | M20 | 21.0 | 34.0 | 3.0 | 250 |
| 1010780000VR | M24 | 25.0 | 39.0 | 4.0 | 250 |
| 1010800000VR | M30 | 31.0 | 50.0 | 4.0 | 250 |
Pg Nylon Cable Gland
TECHNICAL DATA
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
- Locknut and sealing washer available separately
