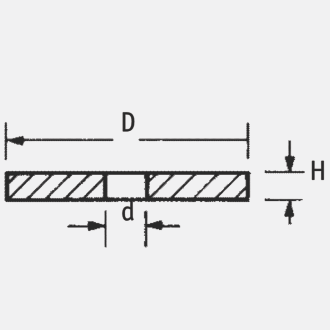

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||
|---|---|---|---|---|---|
| Size | d | D | H | ||
| 0050010000VR | M2 | 2.2 | 5.0 | 0.3 | 1000 |
| 0050780000VR | M2.5 | 2.7 | 6.0 | 0.5 | 1000 |
| 0030305000001 | M3 | 3.2 | 7.0 | 0.5 | 1000 |
| 003040700001 | M4 | 4.3 | 9.0 | 0.8 | 1000 |
| 470828 | M5 | 5.3 | 10.0 | 1.0 | 1000 |
| 0050320000VR | M6 | 6.4 | 12.0 | 1.6 | 1000 |
| 0050410000VR | M8 | 8.4 | 16.0 | 1.6 | 1000 |
| 0050470000VR | M10 | 10.5 | 20.0 | 2.0 | 1000 |
| 0050550000VR | M12 | 13.0 | 24.0 | 2.5 | 500 |
| 0050610000VR | M14 | 15.0 | 30.0 | 3.0 | 1000 |
| 0050650000VR | M16 | 17.0 | 30.0 | 3.0 | 250 |
| 0050700000VR | M18 | 19.0 | 34.0 | 3.0 | 250 |
| 0051010000VR | M20 | 21.0 | 37.0 | 3.0 | 250 |
| 0051030000VR | M24 | 25.0 | 44.0 | 4.0 | 250 |
| 0051270000VR | M27 | 28.0 | 50.0 | 4.0 | 250 |
| 0051300000VR | M30 | 31.0 | 55.5 | 4.0 | 250 |
| 0051360000VR | M36 | 37.0 | 66.0 | 5.0 | 250 |
| 0051390000VR | M39 | 40.0 | 72.0 | 6.0 | 250 |
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
