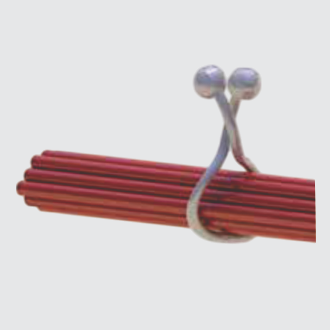

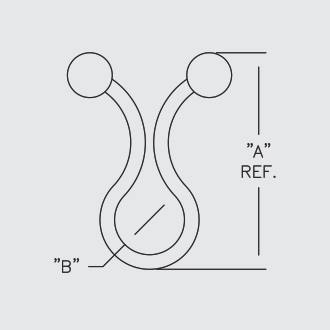

| Part Number | “A” (mm) | Cable Bundle Dia (mm) | Std Pack Qty |
|---|---|---|---|
| 58005000002 | 20 | 4 – 6.5 | |
| TL-250 | 22.9 | 5.1 – 7.6 | 1000 NOS |
| TL-350 | 26.2 | 7.6 – 12.7 | 1000 NOS |
| TL-450 | 30.5 | 10.2 – 12.7 | 1000 NOS |
| TL-600 | 33.7 | 14 – 16.5 | 1000 NOS |
| TL-750 | 39.4 | 17.8 – 20.3 | 1000 NOS |
| TL-950 | 43.4 | Max. 25.4 | 1000 NOS |
| TL-1125 | 55.6 | Max. 30.2 | 1000 NOS |
| TL-1375 | 68.1 | Max. 36.5 | 1000 NOS |
| TL-1500 | 74.4 | Max. 39.7 | 1000 NOS |
| TL-1750 | 87.6 | Max. 46 | 1000 NOS |
SR 1785
Nylon 6.6
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
Material : Brass Nickel-Plated
Lamellar Insert : PA 6
Sealing Ring :CR
Protection Class : NBR-Oz
Test Standard* : IP66/ IP68 – 5 bar/ IP69k
Temperature : UL 514B
Strain Relief : DIN EN 62444 Tab. 2A
O-Ring : -30 °C to +100 °C
Material: Nylon 6/6
OPERATING TEMP: -30°C to +100°C (+150°C – Short Term)
Thread: Metric Standard & Long Mounting Thread
Flammability: UL94 V-2, UL94 V0
Protection Rating: IP68
Color: Black and Grey Other Colours on Request
Approval: ROHS, UL, CE, REACH,
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
