Back Cover
Flip to Back

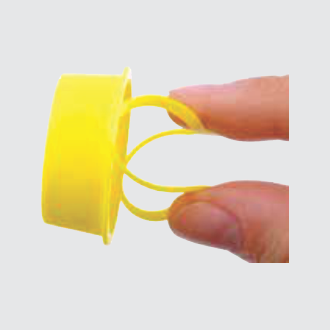

Tapered Plug With Ring Tab

SR 1174
Yellow LDPE

  • Can be used either as a plug or a cap
  • Tapered profile for extended dimensions
  • Easy removal of the part with strong ring tab
ENQUIRY!

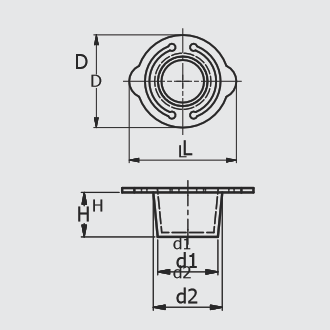

Part Number Dimensions (mm) Std Pack Qty
d1 d2 H D L
498716 5.0 7.0 9.5 17.3 20.3 1000
498717 6.0 8.0 9.5 18.2 21.1 1000
498718 7.0 9.5 9.5 20.3 23.3 1000
498719 8.0 10.0 9.5 20.3 23.2 1000
498720 9.5 11.5 9.5 21.9 24.8 1000
498721 10.5 12.5 9.5 22.6 26.5 1000
498722 11.5 13.5 9.5 23.7 27.5 1000
498723 12.5 14.5 10.0 24.5 28.4 1000
498724 13.5 15.5 10.0 25.5 29.5 1000
498725 14.2 16.2 10.0 26.3 30.3 1000
498726 14.5 17.0 10.0 27.0 31.0 500
498727 15.5 18.0 10.0 28.3 32.0 500
498728 17.5 19.5 10.0 30.0 34.0 500
498729 18.0 20.0 10.0 30.0 34.0 500
498730 19.0 21.5 11.0 32.0 35.7 500
498731 21.0 24.2 11.0 34.7 38.7 500
498732 22.5 25.5 12.0 36.0 40.0 500
498733 25.0 28.0 12.0 38.5 42.2 500
498734 29.0 31.5 12.0 41.8 47.0 500
498735 29.5 32.0 12.0 42.5 47.6 500
