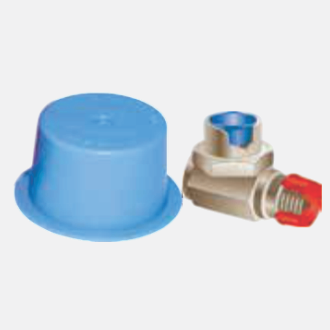

Tapered Caps Or Plugs

SR 1111
Blue LDPE

  • The tapered design allows the part to plug multiple
    inner diameters or cap multiple outside diameters
  • Protects against damage, dirt, moisture and corrosion during storage and shipping

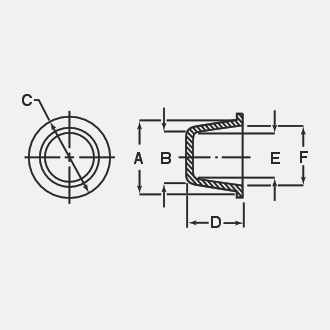

TO ASSURE PROPER FIT

PLUG CAPS
Plug dimension “A” should be
approx. 1% larger than the
inner diameter of the part.
Minimum of .020″		 Cap dimension “E” should be
approx. 1% smaller than the
outside diameter of the part.
Minimum of .020″
ENQUIRY!

Part Number Use as a Plug Use as a Cap Pack Qty. Bulk Pack Qty
A B C D E F
Blue In mm In mm In mm In mm In mm In mm
1 0.180 4.57 0.115 2.92 0.313 7.94 0.406 10.32 0.051 1.30 0.118 3.00 1 5000
1S 0.180 4.57 0.138 3.51 0.310 7.87 0.250 6.35 0.051 1.30 0.118 3.00 1 5000
1000A 0.205 5.21 0.145 3.68 0.410 10.41 0.410 10.41 0.079 2.01 0.150 3.81 1 5000
2 0.240 6.10 0.175 4.45 0.375 9.53 0.375 9.53 0.109 2.77 0.175 4.45 1 5000
3 0.268 6.81 0.209 5.31 0.375 9.53 0.375 9.53 0.127 3.23 0.193 4.90 1 5000
3-W 0.274 6.95 0.200 5.08 0.594 15.08 0.375 9.53 0.150 3.81 0.220 5.58 1 5000
4 0.275 6.99 0.209 5.31 0.438 11.11 0.375 9.53 0.150 3.81 0.209 5.31 1 5000
5 0.302 7.67 0.240 6.10 0.469 11.91 0.375 9.53 0.175 4.45 0.240 6.10 1 5000
6 0.335 8.51 0.265 6.73 0.469 11.91 0.375 9.53 0.204 5.18 0.275 6.99 1 5000
7 0.365 9.27 0.300 7.62 0.531 13.49 0.375 9.53 0.234 5.94 0.301 7.65 1 5000
7-W 0.365 9.27 0.300 7.62 0.680 17.27 0.375 9.53 0.234 5.94 0.301 7.65 1 5000
7-S 0.365 9.27 0.330 8.38 0.500 12.70 0.219 5.56 0.266 6.76 0.301 7.65 1 5000
8 0.398 10.11 0.330 8.38 0.563 14.29 0.375 9.53 0.275 6.99 0.330 8.38 1 5000
9 0.428 10.87 0.360 9.14 0.594 15.08 0.375 9.53 0.299 7.59 0.365 9.27 1 5000
10 0.460 11.68 0.390 9.91 0.625 15.88 0.375 9.53 0.325 8.26 0.396 10.06 1 5000
11 0.485 12.32 0.420 10.67 0.594 15.08 0.375 9.53 0.356 9.04 0.421 10.69 1 5000
12 0.512 13.00 0.447 11.35 0.625 15.88 0.406 10.32 0.385 9.78 0.448 11.38 1 5000
13 0.547 13.89 0.490 12.45 0.719 18.26 0.500 12.70 0.409 10.39 0.485 12.32 1 5000
13-SP 0.545 13.84 0.478 12.14 0.719 18.26 0.313 7.94 0.410 10.41 0.480 12.19 1 5000
13-W 0.547 13.89 0.478 12.14 18.26 22.23 0.500 12.70 0.409 10.39 0.485 12.32 1 7000
14 0.568 14.43 0.500 12.70 0.500 19.05 0.438 11.11 0.435 11.05 0.503 12.78 1 5000
1015A 0.576 14.63 0.500 12.70 12.70 18.29 0.470 11.94 0.440 11.18 0.516 13.11 1 5000
16 0.620 15.75 0.531 13.49 0.409 19.05 0.500 12.70 0.468 11.89 0.555 14.10 1 7500
1020A 0.612 15.54 0.554 14.07 10.39 19.05 0.340 8.64 0.490 12.45 0.551 14.00 1 5000
17 0.634 16.10 0.550 13.97 0.485 19.84 0.500 12.70 0.485 12.32 0.568 14.43 1 7500
18 0.675 17.15 0.580 14.99 12.32 22.23 0.531 13.49 0.520 13.21 0.605 15.37 1 5000
20 0.695 17.65 0.610 15.49 1 21.43 0.500 12.70 0.549 13.94 0.634 16.10 1 6000
21 0.728 18.49 0.641 16.28 5000 22.23 0.500 12.70 0.575 14.61 0.665 16.89 1 5000
1025A 0.694 17.63 0.669 16.99 12.14 19.05 0.220 5.59 0.613 15.57 0.638 16.21 1 5000
22 0.754 19.15 0.675 17.15 0.719 22.23 0.625 15.88 0.615 15.62 0.690 17.53 1 4000
23 0.785 19.94 0.690 17.53 18.26 23.81 0.625 15.88 0.625 15.88 0.724 18.39 1 4000
024A 0.805 20.45 0.750 19.05 0.313 21.84 0.190 4.83 0.688 17.48 0.743 18.87 1 7500
26 0.825 20.96 0.725 18.42 7.94 25.40 0.500 12.70 0.662 16.81 0.760 19.30 1 4000
26-L 0.825 20.96 0.725 18.42 0.410 24.64 0.590 14.99 0.662 16.81 0.760 19.30 1 8000
27 0.848 21.54 0.750 19.05 10.41 26.19 0.625 15.88 0.686 17.42 0.777 19.74 1 7000
28 0.910 23.11 0.802 20.37 0.480 27.78 0.750 19.05 0.725 18.42 0.846 21.49 1 5000
29 0.931 23.65 0.820 20.83 12.19 28.58 0.625 15.88 0.754 19.15 0.868 22.05 1 5500
30 0.973 24.71 0.856 21.74 1.125 28.58 0.750 19.05 0.768 19.51 0.906 23.01 1 4500
31 0.975 24.77 0.870 22.10 1.125 28.58 0.625 15.88 0.804 20.42 0.920 23.37 1 5000
35 1.040 26.42 0.966 22.73 1.140 29.37 0.750 19.05 0.832 21.13 0.975 24.77 1 4500
38 1.045 26.54 1.002 24.89 1.250 31.75 0.500 12.70 0.916 23.27 0.984 24.99 1 2500
40 1.096 27.83 1.110 24.54 1.250 31.75 0.750 19.05 0.902 22.91 1.038 23.36 1 3500
41 1.145 29.08 1.165 25.45 1.313 33.34 0.750 19.05 0.938 23.83 1.079 27.41 1 3500
42 1.225 31.12 0.840 28.19 1.516 38.50 0.750 19.05 1.038 26.37 1.180 29.97 1 2500
44 1.292 32.81 1.175 29.59 1.420 36.10 0.750 19.05 1.090 27.69 1.205 30.61 1 2500
1035A 1.310 33.27 1.276 21.34 1.430 36.32 1.090 27.69 0.777 19.74 1.247 31.67 1 2500
1040A 1.284 32.61 1.225 29.85 1.670 42.42 0.750 19.10 1.113 28.27 1.222 31.04 1 2000
1050A 1.312 33.32 1.235 32.41 1.380 35.05 0.560 14.22 1.155 29.34 1.190 30.23 1 2000
45 1.355 34.42 1.291 31.12 1.500 38.10 0.750 19.05 1.160 29.46 1.295 32.89 1 2500
46 1.350 34.29 1.140 31.37 1.500 38.10 0.750 19.05 1.140 28.96 1.295 32.89 1 2500
47 1.362 34.59 1.291 32.79 1.500 38.10 0.750 19.05 1.227 31.17 1.300 33.02 1 2000
1055A 1.420 36.07 1.311 28.96 1.560 39.62 0.840 21.34 1.085 27.56 1.358 34.49 1 2500
48 1.455 39.96 1.344 32.79 1.625 41.28 1.000 25.40 1.227 31.17 1.391 35.33 1 1500
49 1.470 37.34 1.450 33.30 1.625 41.28 0.750 19.05 1.249 31.72 1.400 35.56 1 2000
51 1.517 38.53 1.520 34.14 1.750 44.45 0.938 23.81 1.282 32.56 1.460 36.83 1 1500
53 1.600 40.64 36.83 1.750 44.45 0.750 19.05 1.385 35.18 1.535 38.99 1 2000
54 1.602 40.69 38.61 1.780 45.21 0.750 19.05 1.456 36.98 1.537 39.04 1 1700
55 1.673 42.49 1.560 39.62 1.875 47.63 0.750 19.05 1.497 38.02 1.620 41.15 1 1500
56 1.750 44.45 1.606 40.79 1.938 49.21 0.750 19.05 1.568 39.83 1.685 42.80 1 1500
1065A 1.850 46.99 1.720 43.69 2.030 51.56 0.750 19.05 1.664 42.27 1.794 45.57 1 3500
57 1.870 47.50 1.735 44.07 2.031 51.60 0.750 19.05 1.675 42.55 1.820 46.23 1 1200
1070A 1.900 48.26 1.440 36.58 2.060 52.32 1.310 33.27 1.378 35.00 1.833 46.56 1 1000
58 1.958 49.73 1.806 45.87 2.125 53.98 1.000 25.40 1.745 44.32 1.893 48.08 1 900
59 1.825 46.36 1.800 45.72 2.031 51.59 0.500 12.70 1.736 44.09 1.760 44.70 1 2000
1075A 1.975 50.17 1.865 47.37 2.380 60.45 0.670 17.02 1.785 45.34 1.895 48.13 1 2500
60 2.020 51.31 1.846 46.89 2.125 53.98 1.000 25.40 1.785 45.34 1.938 49.23 1 1000
061A 2.160 54.86 1.740 44.20 2.310 58.67 1.210 30.73 1.668 42.37 2.093 53.16 1 1000
1080A 2.065 52.45 1.950 49.53 2.200 55.88 0.750 19.05 1.885 47.88 2.000 50.80 1 2500
62 2.085 52.96 1.902 48.31 2.250 57.15 1.000 25.40 1.839 46.71 2.015 51.18 1 850
63 2.168 55.07 1.980 50.29 2.250 57.15 1.000 25.40 1.915 48.64 2.110 53.59 1 800
064A 2.310 58.67 1.940 49.28 2.470 62.74 0.880 22.35 1.875 47.63 2.255 57.28 1 1000
1085A 2.100 53.34 2.020 51.31 2.590 65.79 0.380 9.65 2.060 52.32 2.140 54.36 1 1000
65 2.146 54.51 2.016 51.21 2.313 58.74 0.750 19.05 1.955 49.66 2.083 52.91 1 1000
66 2.253 57.23 2.062 52.37 2.438 61.91 1.031 26.20 2.000 50.80 2.175 55.25 1 700
67 2.355 59.82 2.156 54.76 2.625 66.68 1.000 25.40 2.084 52.93 2.288 58.12 1 600
68 2.279 57.90 2.224 56.50 2.500 63.50 0.500 12.70 2.150 54.60 2.221 56.41 1 1200
069A 2.400 60.96 2.280 57.91 2.800 71.12 0.750 19.05 2.216 56.29 2.336 59.33 1 1500
70 2.425 61.60 2.128 54.05 2.500 63.50 1.000 25.40 2.045 51.94 2.370 60.20 1 700
71 2.485 63.12 2.300 58.42 2.625 66.68 1.000 25.40 2.235 56.77 2.400 60.96 1 600
072A 2.464 62.59 2.300 58.42 2.660 67.56 0.750 19.05 2.220 56.39 2.383 60.53 1 2000
73 2.605 66.17 2.395 60.83 2.625 66.68 1.000 25.40 2.331 59.21 2.541 64.54 1 600
74 2.645 67.18 2.428 61.67 2.750 69.85 0.750 19.05 2.420 61.47 2.580 65.53 1 700
75 2.650 67.31 2.311 58.70 2.750 69.85 1.000 25.40 2.245 57.02 2.585 65.66 1 750
76 2.750 69.85 2.457 62.41 2.875 73.03 1.000 25.40 2.392 60.76 2.685 68.20 1 600
77 2.690 68.33 2.560 65.02 2.875 73.03 0.750 19.05 2.500 63.50 2.625 66.68 1 700
78 2.805 71.25 2.645 67.18 3.000 76.20 0.500 12.70 2.580 65.53 2.725 69.22 1 1000
080A 2.870 72.90 2.706 68.73 3.060 77.72 0.720 18.29 2.625 66.68 2.789 70.84 1 500
81 3.000 76.20 2.720 69.09 3.125 79.38 1.000 25.40 2.626 66.70 2.950 74.93 1 500
82 2.980 75.69 2.850 72.39 3.250 82.55 0.750 19.05 2.785 70.74 2.920 74.17 1 500
83 3.158 80.21 2.995 76.07 3.375 85.73 0.500 12.70 2.915 74.04 3.098 78.69 1 750
85 3.245 82.42 2.980 75.69 3.375 85.73 1.000 25.40 2.900 73.66 3.165 80.39 1 400
86 3.365 85.47 3.090 78.49 3.500 88.90 1.000 25.40 3.005 76.33 3.285 83.44 1 400
87 3.450 87.63 3.319 84.30 3.625 92.08 0.500 12.70 3.239 82.27 3.371 85.62 1 500
88 3.575 90.81 3.236 82.19 3.938 100.01 1.000 25.40 3.156 80.16 3.494 88.75 1 300
89 3.600 91.44 3.465 88.01 3.875 98.43 0.880 22.35 3.405 86.49 3.540 89.22 1 350
90 3.800 96.52 3.675 93.35 4.000 101.60 0.750 19.05 3.605 91.57 3.730 94.74 1 300
91 3.925 99.70 3.800 96.52 4.125 104.78 0.688 17.46 3.715 94.36 3.845 97.66 1 300
92 4.070 103.38 3.915 99.45 4.375 111.13 0.781 19.84 3.810 96.77 3.980 101.09 1 250
93 4.190 106.43 4.030 102.36 4.500 114.30 0.750 19.05 3.950 100.33 4.110 104.39 1 250
94 4.445 112.90 4.215 107.06 4.875 123.83 1.000 25.40 4.135 105.03 4.380 111.25 1 200
95 4.605 116.97 4.365 110.87 5.000 127.00 1.000 25.40 4.289 108.95 4.500 114.30 1 200
096A 4.850 123.19 4.640 117.86 5.250 133.35 0.910 23.11 4.570 116.08 4.780 121.41 1 250
1090A 4.970 126.24 4.790 121.67 5.380 136.65 1.030 26.16 4.710 119.63 4.890 124.21 1 250
1100A 5.090 129.29 4.910 124.71 5.500 139.70 1.030 26.16 4.830 122.68 5.010 127.25 1 250
1110A 5.200 132.08 4.990 126.75 5.630 143.00 1.030 26.16 4.920 124.97 5.100 129.54 1 250
099A 5.360 136.14 5.180 131.57 5.880 149.35 1.030 26.16 5.110 129.79 5.290 134.37 1 250
100A 5.490 139.45 5.330 135.38 5.880 149.35 0.910 23.11 5.210 132.33 5.370 136.40 1 250
101 5.620 142.75 5.470 138.94 6.130 155.70 1.000 25.40 5.390 136.91 5.540 140.72 1 100
102A 5.750 146.05 5.570 141.48 6.190 157.23 1.030 26.16 5.490 139.45 5.670 144.02 1 250
103 5.874 149.20 5.640 143.26 6.250 158.80 1.000 25.40 5.540 140.72 5.794 147.17 1 100
104 6.180 156.97 6.010 152.65 6.620 168.15 1.000 25.40 5.920 150.37 6.100 154.94 1 90
106 6.560 166.62 6.400 162.56 6.940 176.28 0.900 22.86 6.330 160.78 6.480 164.59 1 100
108 6.710 170.43 6.610 167.89 7.190 182.63 1.530 38.86 6.530 165.86 6.630 168.40 1 100
110 7.120 180.85 7.050 179.07 7.630 193.80 1.030 26.16 6.970 177.04 7.040 178.82 1 100
