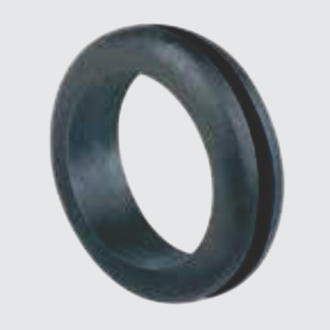

Standard Grommets

SR 1700/1701
SR 1700 Black PVC

  • Protects wires and cables passing through panels
  • SR 1701 Black Thermoplastic Rubber
  • Resistant to most oils and greases
  • Withstands temperatures from -40°C to +135°C
ENQUIRY!

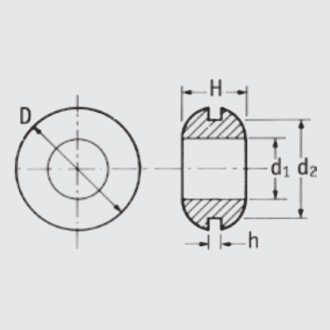

Part Number “Mounting Hole (mm)” “Panel Hole Thickness (mm)” Dimensions (mm) Std Pack Qty
PVC TPR d1 D H
11177 15057 4.8 0.8 2.8 8.0 4.8 10000 Nos
11026 15058 4.8 1.6 3.2 8.0 6.4 10000 Nos
15515 – 6.0 1.2 3.2 8.8 4.0 10000 Nos
10629* 15060 6.4 0.8 4.0 9.5 4.0 10000 Nos
11333 15059 6.4 1.6 4.0 9.5 6.3 10000 Nos
10280 15061 6.4 1.6 4.8 9.5 7.0 10000 Nos
12603 15061 6.4 1.6 4.8 9.5 7.0 10000 Nos
11402 15062 6.4 3.0 4.0 9.5 8.0 10000 Nos
498069 7.0 1.5 4.8 11.1 6.4 10000 Nos
10518 – 7.5 1.6 4.8 12.5 6.8 10000 Nos
15501 – 7.9 1.2 5.6 11.1 6.4 10000 Nos
10117 – 7.9 1.6 3.0 11.0 8.0 10000 Nos
– 15064 8.0 0.8 4.8 11.0 4.8 10000 Nos
11105 – 8.0 0.8 5.5 11.0 5.5 10000 Nos
10597* – 8.0 1.6 5.5 11.0 5.5 10000 Nos
– 15065 8.0 1.6 5.5 11.0 5.5 10000 Nos
10489 – 8.0 3.0 4.8 11.0 4.8 10000 Nos
11318 15072 9.5 1.2 7.0 13.8 4.0 10000 Nos
– 15067 9.5 1.6 4.8 12.5 6.8 10000 Nos
10885* 15069 9.5 1.6 6.4 14.2 6.4 10000 Nos
11178 – 9.5 1.6 6.4 14.2 7.0 10000 Nos
11303 – 9.5 1.6 6.4 14.2 5.0 10000 Nos
10428 15073 9.5 1.6 8.0 14.2 4.8 10000 Nos
11107 15074 9.5 1.6 8.0 14.2 8.0 10000 Nos
15505 – 9.5 2.4 5.6 11.1 4.0 10000 Nos
– 15068 9.5 2.4 6.4 14.2 7.0 10000 Nos
15523 – 9.6 3.2 4.0 15.9 6.4 10000 Nos
11272 15071 10.2 1.2 7.0 13.8 4.5 10000 Nos
40045 – 10.3 1.6 7.2 14.3 4.0 10000 Nos
1347529 – 10.3 1.6 7.9 15.9 7.9 10000 Nos
11146 15075 11.0 1.6 8.0 14.2 4.8 10000 Nos
11151 15076 11.0 1.6 8.0 14.2 8.0 10000 Nos
10744 15078 11.0 1.6 8.0 16.0 6.4 10000 Nos
15524 – 11.9 1.6 6.4 15.9 7.9 10000 Nos
15506 – 11.9 2.0 9.6 17.5 6.8 10000 Nos
10605 15079 12.5 1.6 6.4 16.0 8.0 10000 Nos
10646 15080 12.5 1.6 8.0 16.0 6.4 10000 Nos
10644 15084 12.5 1.6 9.5 17.0 7.0 10000 Nos
11019 – 12.5 1.6 9.5 19.0 6.4 10000 Nos
10881 15086 12.5 1.6 11.0 19.0 6.4 10000 Nos
10770 15081 12.5 3.0 8.0 16.0 8.0 10000 Nos
10911 15083 12.5 3.0 9.5 17.0 8.8 10000 Nos
15508 – 13.5 3.2 9.6 19 9.6 10000 Nos
40042 – 13.5 4 9.6 23 8.8 10000 Nos
10592 – 14.2 1.6 9.5 19 6.4 10000 Nos
10281 15087 14.2 1.6 11 19 6.4 10000 Nos
15528 – 15.9 0.8 11.1 19 9.5 10000 Nos
1347531** – 15.9 1.2 12.7 20.6 5 10000 Nos
10738 15089 16 1.2 12.5 20.5 7 10000 Nos
10628 15090 17.5 1.6 12.5 22 6.4 10000 Nos
10512 – 17.5 1.6 14.2 22 4.8 10000 Nos
15500 – 19 1.6 12 25.4 7.9 10000 Nos
11029 15096 19 1.6 12.5 25.5 6.4 10000 Nos
11326 – 19 1.6 16 22 5.5 10000 Nos
10293 15093 19 1.6 16 24 6 10000 Nos
10215 – 19 1.6 17.5 24 4.8 10000 Nos
40047 – 19 4.8 11.1 25.4 9.5 10000 Nos
11181 – 20 1.6 12.5 25.5 6.4 10000 Nos
30007 15095 20 1.6 16 24 6.5 10000 Nos
11025 – 20.5 1.2 16 27 8 10000 Nos
– 15098 20.5 1.2 16 27 8 10000 Nos
11213 – 25.2 1.2 18.5 31.4 7.5 10000 Nos
10487 15099 25.2 1.6 18.5 31.4 8 10000 Nos
10419 – 25.2 1.6 22 30 8 10000 Nos
– 15101 25.5 1.6 22 30 8 10000 Nos
15514** – 30.6 3.2 25.4 44.4 9.9 10000 Nos
11214 15102 31 1.6 24.9 38 7.8 10000 Nos
11208 – 32 0.8 25.5 44.5 6.4 10000 Nos
10446 15105 37 1.6 31.2 45.5 9.5 10000 Nos
10261 15104 38.0 3.0 32.0 46.0 11.0 10000 Nos
11072 15106 50.0 1.6 45.0 60.0 10.0 10000 Nos
PART NUMBER PART NUMBER MOUNTING HOLE (d2) PANEL HOLE THICKNESS DIMENSIONS (mm) DIMENSIONS (mm) DIMENSIONS (mm) STD PACK QTY
PVC EPDM d1 D H
498021 498062 5.0 1.00 2.00 8.00 4.00 1000
498022 498063 5.0 1.50 2.00 8.00 4.50 1000
498023 498064 5.0 2.00 2.00 8.00 5.00 1000
498024 498065 5.0 1.00 3.00 8.00 4.00 1000
498025 498066 5.0 1.50 3.00 8.00 4.50 1000
498026 498067 5.0 2.00 3.00 8.00 5.00 1000
498027 498068 7.0 1.50 3.00 10.00 6.00 500
498028 498070 8.0 1.00 4.00 11.00 8.00 500
498029 498071 8.0 2.00 4.00 11.00 6.00 500
498030 498072 8.0 3.00 4.00 11.00 7.00 500
498031 498073 8.0 1.00 6.00 11.00 5.00 500
498032 498074 8.0 2.00 6.00 11.00 6.00 500
– 498075 9.0 1.00 6.00 12.00 5.00 500
– 498076 9.0 1.50 6.00 12.00 5.50 500
– 498077 9.0 2.00 6.00 12.00 6.00 500
– 498078 9.0 3.00 6.00 12.00 7.00 500
– 498079 9.0 4.00 6.00 12.00 8.00 500
498033 498080 10.0 1.00 6.00 14.00 6.00 500
498034 498081 10.0 1.50 6.00 14.00 6.50 500
498035 498082 10.0 2.00 6.00 14.00 7.00 500
498036 498083 10.0 3.00 6.00 14.00 8.00 500
498037 498084 10.0 1.00 8.00 14.00 6.00 500
498038 498085 10.0 1.50 8.00 14.00 6.50 500
498039 498086 10.0 2.00 8.00 14.00 7.00 500
498040 498087 10.0 3.00 8.00 14.00 8.00 500
– 498088 11.0 1.00 8.00 16.00 6.00 250
– 498089 11.0 2.00 8.00 16.00 7.00 250
– 498090 11.0 3.00 8.00 16.00 8.00 250
– 498091 11.0 4.00 8.00 16.00 9.00 250
498041 498092 12.0 1.00 8.00 16.00 6.00 250
498042 498093 12.0 2.00 8.00 16.00 7.00 250
498043 498094 12.0 3.00 8.00 16.00 8.00 250
498044 498095 12.0 4.00 8.00 16.00 9.00 250
498045 498096 12.0 1.0 10.0 16.0 6.0 250
498046 498097 12.0 1.5 10.0 16.0 6.5 250
498047 498098 12.0 2.0 10.0 16.0 7.0 250
498048 498099 12.0 3.0 10.0 16.0 8.0 250
– 498100 14.0 1.0 11.0 18.0 6.0 250
– 498101 14.0 2.0 11.0 18.0 7.0 250
– 498102 14.0 3.0 11.0 18.0 8.0 250
498049 498103 15.0 1.0 11.0 20.0 6.0 250
498050 498104 15.0 2.0 11.0 20.0 7.0 250
498051 498105 15.0 3.0 11.0 20.0 8.0 250
498052 498106 15.0 4.0 11.0 20.0 9.0 250
498053 498107 18.0 1.0 12.0 22.0 6.0 250
498054 498108 18.0 2.0 12.0 22.0 7.0 250
498055 498109 18.0 3.0 12.0 22.0 8.0 250
498056 498110 18.0 4.0 12.0 22.0 9.0 250
498057 498111 22.0 1.0 16.0 27.0 7.0 100
498058 498112 22.0 1.5 16.0 27.0 7.5 100
498059 498113 22.0 2.0 16.0 27.0 8.0 100
498060 498114 22.0 3.0 16.0 27.0 9.0 100
498061 498115 22.0 4.0 16.0 27.0 10.0 100
– 498116 27.0 1.0 21.0 34.0 9.0 50
– 498117 27.0 2.0 21.0 34.0 10.0 50
– 498118 27.0 3.0 21.0 34.0 11.0 50
– 498119 27.0 4.0 21.0 34.0 12.0 50
– 498120 40.0 1.0 31.0 48.0 12.0 25
– 498121 40.0 2.0 31.0 48.0 13.0 25
– 498122 40.0 3.0 31.0 48.0 14.0 25
– 498123 40.0 4.0 31.0 48.0 15.0 25
– 498124 52.0 1.0 41.0 60.0 13.0 10
– 498125 52.0 2.0 41.0 60.0 14.0 10
– 498126 52.0 3.0 41.0 60.0 15.0 10
– 498127 52.0 4.0 41.0 60.0 16.0 10
Part Number “Mounting Hole (mm)” “Panel Hole Thickness (mm)” Dimensions (mm) Dimensions (mm) Dimensions (mm) Std Pack Qty
UL94 HB TPE d1 D H
HG-2 4.8 1.6 3.2 8 6.4 1000
HG-2.5 6.4 1.6 4 9.5 6.3 1000
HG-3 7.7 0.8 4.8 10.9 4.8 1000
HG-3.5 8 1.6 5.5 11 5.5 1000
HG-4 9.5 2.4 6.4 14.2 7 1000
HG-5 10.9 1.6 8 14.3 4.8 1000
HG-17 11 2 8 16 7 1000
HG-6 12.5 1.6 9.5 17 7 1000
HG-8 16.8 1.6 12.6 21.5 6.4 1000
HG-9 17.1 1.6 14.2 22.2 4.8 1000
HG-11 18.7 1.6 17.1 23.7 4.8 1000
HG-10 18.8 1.6 15.5 22.2 5.6 1000
HG-18 19 2.4 12.7 24 7.1 1000
HG-12 24.8 1.6 18.6 31.3 8 1000
HG-14 25.1 1.6 21.8 30.2 8 1000
HG-16 31.5 1.6 24.6 38.1 8 1000
