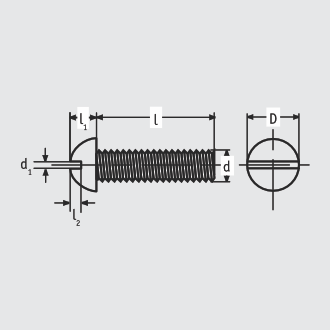

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||||
|---|---|---|---|---|---|---|---|
| d | l | D | I1 | d1 | I2 | ||
| 0130060000VR | M3 x 0.5 | 4.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130070000VR | M3 x 0.5 | 6.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130090000VR | M3 x 0.5 | 10.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130100000VR | M3 x 0.5 | 12.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130120000VR | M3 x 0.5 | 16.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130130000VR | M3 x 0.5 | 20.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130140000VR | M3 x 0.5 | 25.0 | 5.5 | 2.7 | 0.8 | 0.9 | 1000 |
| 0130160000VR | M4 x 0.7 | 6.0 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130170000VR | M4 x 0.7 | 8.0 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130180000VR | M4 x 0.7 | 10.0 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130190000VR | M4 x 0.7 | 12 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130210000VR | M4 x 0.7 | 16.0 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130220000VR | M4 x 0.7 | 20.0 | 7.0 | 3.5 | 1.0 | 1.3 | 1000 |
| 0130270000VR | M5 x 0.8 | 8.0 | 9.0 | 4.5 | 1.1 | 1.4 | 1000 |
| 0130280000VR | M5 x 0.8 | 10.0 | 9.0 | 4.5 | 1.1 | 1.4 | 1000 |
| 0130310000VR | M5 x 0.8 | 16.0 | 9.0 | 4.5 | 1.1 | 1.4 | 1000 |
| 0130330000VR | M5 x 0.8 | 20.0 | 9.0 | 4.5 | 1.1 | 1.4 | 1000 |
| 0130390000VR | M6 x 1.0 | 6.5 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130410000VR | M6 x 1.0 | 8.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130420000VR | M6 x 1.0 | 10.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130450000VR | M6 x 1.0 | 16.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130460000VR | M6 x 1.0 | 20.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130470000VR | M6 x 1.0 | 22.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130480000VR | M6 x 1.0 | 25.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
| 0130500000VR | M6 x 1.0 | 30.0 | 10.0 | 5.0 | 1.6 | 1.6 | 1000 |
