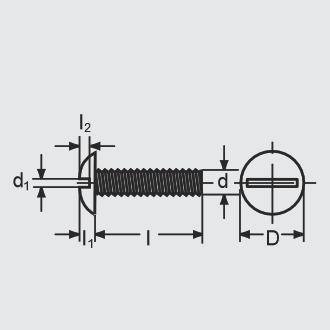

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||||
|---|---|---|---|---|---|---|---|
| d | l | D | I1 | d1 | I2 | ||
| 0170170000VR | M4 x 0.7 | 8.0 | 9.0 | 2.2 | 1.2 | 1.0 | 1000 |
| 0170180000VR | M4 x 0.7 | 10.0 | 9.0 | 2.2 | 1.2 | 1.0 | 1000 |
| 0170190000VR | M4 x 0.7 | 12.0 | 9.0 | 2.2 | 1.2 | 1.0 | 1000 |
| 0170210000VR | M4 x 0.7 | 16.0 | 9.0 | 2.2 | 1.2 | 1.0 | 1000 |
| 0170220000VR | M4 x 0.7 | 20.0 | 9.0 | 2.2 | 1.2 | 1.0 | 1000 |
| 0170270000VR | M5 x 0.8 | 8.0 | 11.0 | 2.7 | 1.2 | 1.2 | 1000 |
| 0170280000VR | M5 x 0.8 | 10.0 | 11.0 | 2.7 | 1.2 | 1.2 | 1000 |
| 0170290000VR | M5 x 0.8 | 12.0 | 11.0 | 2.7 | 1.2 | 1.2 | 1000 |
| 0170310000VR | M5 x 0.8 | 16.0 | 11.0 | 2.7 | 1.2 | 1.2 | 1000 |
| 0170340000VR | M5 x 0.8 | 25.0 | 11.0 | 2.7 | 1.2 | 1.2 | 1000 |
| 0170390000VR | M6 x 1.0 | 6.5 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170410000VR | M6 x 1.0 | 8.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170420000VR | M6 x 1.0 | 10.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170430000VR | M6 x 1.0 | 12.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170450000VR | M6 x 1.0 | 16.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170460000VR | M6 x 1.0 | 20.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170470000VR | M6 x 1.0 | 22.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170480000VR | M6 x 1.0 | 25.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170500000VR | M6 x 1.0 | 30.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170520000VR | M6 x 1.0 | 40.0 | 14.0 | 3.3 | 1.6 | 1.5 | 1000 |
| 0170530000VR | M6 x 1.0 | 50.0 | 14.0 | 3.3 | 6.0 | 1.5 | 500 |
| 0170540000VR | M6 x 1.0 | 60.0 | 14.0 | 3.3 | 1.6 | 1.5 | 500 |
| 0170560000VR | M6 x 1.0 | 80.0 | 14.0 | 3.3 | 1.6 | 1.5 | 500 |
| 0170650000VR* | M8 x 1.25 | 10.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |
| 0170680000VR | M8 x 1.25 | 16.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |
| 0170690000VR | M8 x 1.25 | 20.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |
| 0170700000VR | M8 x 1.25 | 25.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |
| 0170710000VR | M8 x 1.25 | 30.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |
| 0170720000VR | M8 x 1.25 | 35.0 | 20.0 | 4.4 | 2.0 | 2.0 | 1000 |

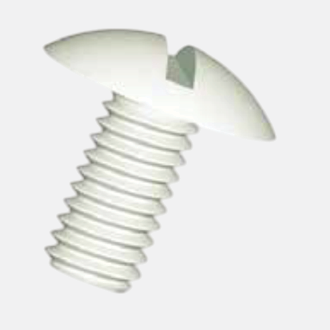

Slotted Mushroom Hescrews
ad SR 1971
Natural Nylon 6.6
- Refer to standard NF E 25-129 for guidance purposes only
