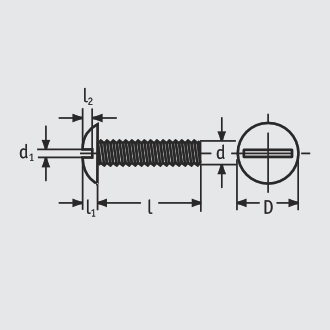

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||||
|---|---|---|---|---|---|---|---|
| d | l | D | l1 | d1 | l2 | ||
| 0170180001VR | M4 x 0.7 | 10.0 | 9.0 | 2.2 | 1.2 | 1.0 | 100 |
| 0170210001VR | M4 x 0.7 | 16.0 | 9.0 | 2.2 | 1.2 | 1.0 | 100 |
| 0170220001VR | M4 x 0.7 | 20.0 | 9.0 | 2.2 | 1.2 | 1.0 | 100 |
| 0170280001VR | M5 x 0.8 | 10.0 | 11.0 | 2.7 | 1.2 | 1.2 | 100 |
| 0170310001VR | M5 x 0.8 | 16.0 | 11.0 | 2.7 | 1.2 | 1.2 | 100 |
| 0170330001VR | M5 x 0.8 | 20.0 | 11.0 | 2.7 | 1.2 | 1.2 | 100 |
| 0170420001VR | M6 x 1.0 | 10.0 | 14.0 | 3.3 | 1.6 | 1.5 | 100 |
| 0170450001VR | M6 x 1.0 | 16.0 | 14.0 | 3.3 | 1.6 | 1.5 | 100 |
| 0170500001VR | M6 x 1.0 | 30.0 | 14.0 | 3.3 | 1.6 | 1.5 | 100 |
| 0170520001VR | M6 x 1.0 | 40.0 | 14.0 | 3.3 | 1.6 | 1.5 | 100 |
| 0170650001VR | M8 x 1.25 | 10.0 | 20.0 | 4.4 | 2.0 | 2.0 | 100 |
| 0170680001VR | M8 x 1.25 | 16.0 | 20.0 | 4.4 | 2.0 | 2.0 | 100 |
| 0170690001VR | M8 x 1.25 | 20.0 | 20.0 | 4.4 | 2.0 | 2.0 | 100 |
| 0170710001VR | M8 x 1.25 | 30.0 | 20.0 | 4.4 | 2.0 | 2.0 | 100 |
Brass Nickel-Plated Cable Gland
Material : Brass Nickel-Plated
Lamellar Insert : PA 6
Sealing Ring :CR
Protection Class : NBR-Oz
Test Standard* : IP66/ IP68 – 5 bar/ IP69k
Temperature : UL 514B
Strain Relief : DIN EN 62444 Tab. 2A
O-Ring : -30 °C to +100 °C
