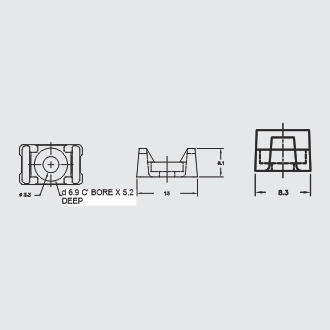

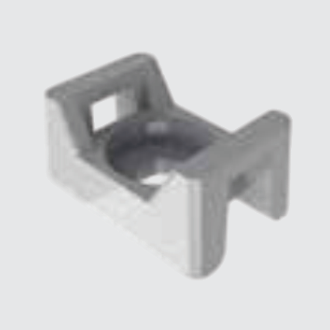

| PART NUMBER | MAX CABLE TIE WIDTH ACCEPTED (mm) | MOUNTING SCREW/RIVETa | STD PACK QTY |
|---|---|---|---|
| FTH-28RS-01 | 3.2 | screw or rivets (see table) | 1000 |
| MOUNTING RIVETS FOR FTH -14R-01 | ||
|---|---|---|
| RIVET NUMBER | HOLE Ø (mm) | PANEL THICKNESS (mm) |
| SR-3035 | 3.1-3.2 | up to 0.9 |
| SR-3045 | 3.1-3.2 | 0.9 – 1.9 |
| SR-3055 | 3.1-3.2 | 1.9 – 2.9 |
| SR-3065 | 3.1-3.2 | 2.9 – 3.9 |
| SR-3075 | 3.1-3.2 | 3.9 – 4.9 |
| SR-3080 | 3.1-3.2 | 4.4 – 5.4 |
| SR-3090 | 3.1-3.2 | 5.4 – 6.4 |
| SR-3100 | 3.1-3.2 | 6.4 – 7.4 |
SR 1705
Black PVC/TPE, RMS-262
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
