SR 1719
Nylon 6.6

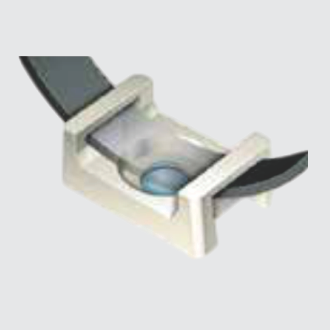

FTH-13/FTH-14
Natural Ul94 V2 Nylon 6/6, RMS-01
FTH-28
Natural UL94 V2 Nylon 6/6, RMS-01

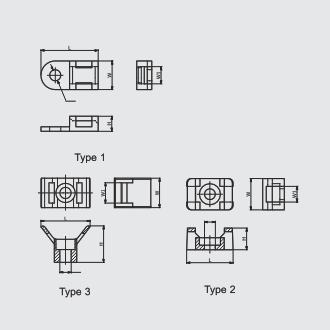

| Part Number | Tie Size (mm) | Dimensions (mm) | Panel Hole Size | Type | Std Pack Qty | ||||
|---|---|---|---|---|---|---|---|---|---|
| Natural | Black | W1 | L | H | W | ||||
| 460335 | 494649 | 2.4-4.8 | 5.0 | 19.0 | 5.0 | 9.5 | 3.4 | 1 | 100 |
| 460336 | 494650 | 2.4-4.8 | 5.0 | 15.0 | 7.0 | 10.0 | 3.0 | 2 | 100 |
| 460337 | 494651 | 2.4-9 | 9.0 | 23.0 | 9.0 | 16.0 | 6.0 | 2 | 100 |
| 460338 | 494652 | 2.4-9 | 9.5 | 23.0 | 17.5 | 13.8 | 5.3 | 3 | 100 |
| 460339 | 494653 | 2.4-9 | 9.3 | 30.0 | 11.6 | 14.7 | 5.2 | 3 | 100 |
Material: Nylon 6/6
OPERATING TEMP: -30°C to +100°C (+150°C – Short Term)
Thread: Metric Standard & Long Mounting Thread
Flammability: UL94 V-2, UL94 V0
Protection Rating: IP68
Color: Black and Grey Other Colours on Request
Approval: ROHS, UL, CE, REACH,
Material : Nylon 6/6 / Brass
OPERATING TEMP : -30°C to +100°C
Thread : PG & Metric
Protection class : IP54 / IP68 (with o-ring)
Color : Black and Grey
Approval : ROHS,CE, REACH,
Properties
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
SR 1700/1701
SR 1700 Black PVC
