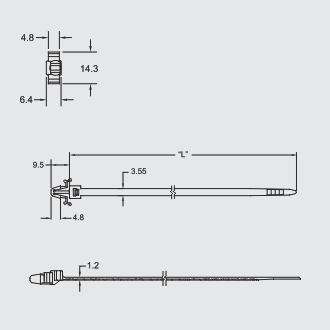

| PART NUMBER | MIN. LOOP TENSILE STRENGTH (KG) | DIMENSIONS (mm) | STD PACK QTY | |||
|---|---|---|---|---|---|---|
| “L” Ref | MAX. BUNDLE Ø | HOLE Ø ± 0.08 | PANEL THICKNESS | |||

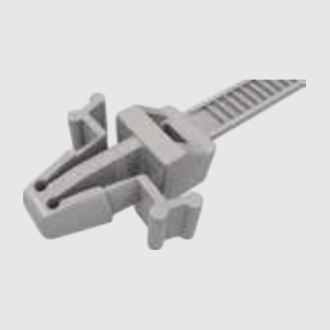

| WIT-30RAR1-2 | 13 | 120.7 | 25.4 | 4.8 | 2 – 2.4 | 1000 |
| WIT-30LAR1-2 | 13 | 146 | 31.8 | 4.8 | 2 – 2.4 | 1000 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
