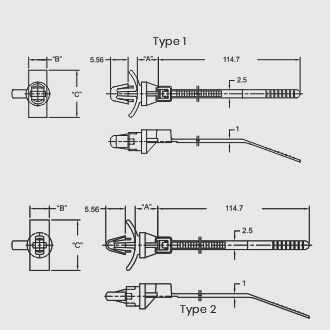

| PART NUMBER | MIN. LOOP TENSILE STRENGTH (KG) | MAX. BUNDLE Ø | TYPE | DIMENSIONS (MM) | STD PACK QTY | ||||
|---|---|---|---|---|---|---|---|---|---|
| “A” | “B” | “C” | HOLE Ø ± 0.08 | Panel Thickness | |||||
| WIT-18RA-4-01-M | 8 | 19.1 | 1 | 6.4 | 5.56 | 14.29 | 4.75 | 0.8 – 2.0 | 1000 |
| WIT-18R1A-4-01 | 8 | 19.1 | 2 | 6.4 | 5.56 | 14.29 | 4.00 | 0.8 – 2.0 | 1000 |
| WIT-18R2A-4-01 | 8 | 19.1 | 1 | 6.4 | 2.79 | 13.90 | 4.75 | 1.6 – 3.6 | 1000 |
SR 1705
Black PVC/TPE, RMS-262
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
SR 1700/1701
SR 1700 Black PVC
SR 1785
Nylon 6.6
