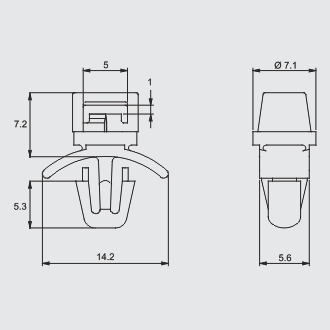

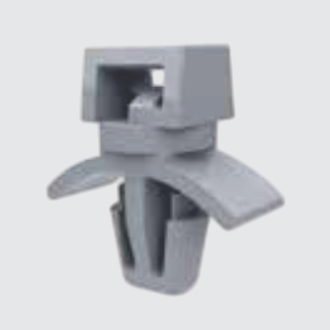

| Part Number | Dimensions (mm) | Std Pack Qty | ||
|---|---|---|---|---|
| Hole Ø | Panel Thickness | Max Cable Tie Width Accepted | ||
| FTH-3A-01 | 5.3 ± 0.08 | 0.8-2 | 4.8 | 1000 |
Related products
Polyester Self Wrap Sleeving
TECHNICAL DATA
Material : Polyester Multifilament and PET Monofilament -0.22mm
Working Temp : -70°C to +150°C
Size : 5.0mm to 38mm
OVER LAP : 25% and 50%
Color : Black,
Approval : ROHS,Reach, CE
Features :
|
Core Applications :
|
Cable Gland Covers (Plugs Round)
Material : Nylon 6/6 / Brass
OPERATING TEMP : -30°C to +100°C
Thread : PG & Metric
Protection class : IP54 / IP68 (with o-ring)
Color : Black and Grey
Approval : ROHS,CE, REACH,
Properties
- To Block entry holes for
- Cable gland when not in use
- UV resistance
- Halogen free
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
Pg Nylon Cable Gland
TECHNICAL DATA
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
- Locknut and sealing washer available separately
Quick-Fit Grommets
SR 1702
Black PVC/TPE, RMS-262/Silicone Rubber, RMS-368
- Snap neatly and quickly into position
TPE/Silicone
