Back Cover
Flip to Back

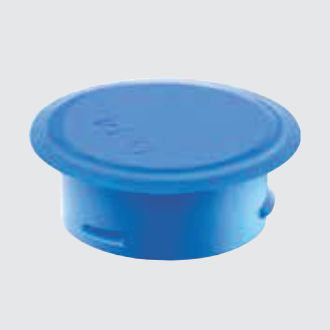

Push-In Plugs

SR 1010
LDPE

  • Quick fitting
  • Suitable for most applications
ENQUIRY!

Blue UNF/JIC

Part Number Thread Size Dimensions (mm) Std Pack Qty
D h d
12512 7⁄16“x20 15.5 7.0 9.5 10000
12513 1⁄2“x20 17.0 7.0 11.0 10000
12514 9⁄16“x14 20.5 7.0 12.5 10000
12515 5⁄8“x18 23.7 6.5 14.3 10000
12516 3⁄4“x16 24.9 8.6 17.4 10000
12517 7⁄8“x14 26.6 10.4 20.3 5000
12518 1″x14 31.0 10.0 23.5 4000
12519 11⁄16“x12 35.5 10.0 24.8 4000

Red without Lugs

Part Number Dimensions (mm) Std Pack Qty
D h d
12520 16.4 6.3 11.9 5000
12522 23.8 7.0 19.2 5000
12523 30.0 6.1 25.5 2500
12524 35.0 8.0 30.9 2000

Related products

3m

Fire Sleeves

TECHNICAL DATA
Material: Fiberglass Multifilament and Silicone
Thermal Class: “H” Class
Operating Temp: “-60°C To +260°C (-76°F – +500°F)
1093°C (2000°F for Max. 30 Mins)
upto 1650°C (3000°F for Max. 30 Sec)”
Sizes: 6mm to 100mm
Dielectric Strength: 10000 Volts
Flammability: VW – 1 and MSHA
Standard Color: Brick Red & Black
Approval: ROHS, UL, CE, REACH
OTHER COLORS ON REQUEST

FEATURES
  • Superior Electrical Properties
  • Excellent Low Temperature Flexibility
  • Flame Retardant and Insulation performance
  • High level Thermal Protection
  • Mechanical & Chemical Resistance
  • Oil Resistance
  • Halogen Free
  • High Flexibility
ENQUIRY!
9-Photoroom-Photoroom

ECO Hdpe Spiral Guard

Technical Data

Material: HDPE (High-Density Polyethylene)
Operating Temp: -40°C To + 130 °C
Sizes: 12mm to 140mm
Flammability: Highly UV resistant
Color: Black, Other Colours on Request
Approval: ROHS, UV, CE, REACH,MSHA, FRAS
Roll Length: 20Mtr / 50Mtr

Applications and Benefits of Spiral guard Suits:
  • Flexible for fixing and removing. Provides good protection and It is flexible for fixing and removing.
  • Provides good protection and prevents from injury risks
    in industries.
  • Heavy duty hose wrap & flexible and easy-to-install
  • Highly UV resistant, tolerate both frost and heat & Long lasting
    hose protection
  • We supply standard product in 20 & 50 meter rolls.
ENQUIRY!
11-11-Photoroom

Moss Plugs

SR 1013
Black PVC or Green Vinyl

  • Highly resistant to shredding
  • Green vinyl can be used with oils
    and greases
ENQUIRY!
23

Unf Standrd Threaded PLUGS

BLWF Series
Plug – Yellow Nylon
Gasket – Black Nitrile

  • The wide flange design keeps any paint flakes away
    from the hole when removed
  • The nylon material absorbs paint keeping paint flakes
    to a minimum
  • The nitrile gasket seals the plug to the mating surface
    for a watertight seal
  • Can be applied or removed by hand, screwdriver or
    with a torque wrench
  • Nylon is recommended for intermittent temperatures
    up to 230°F (110°C) to -40°F (-40°C)
ENQUIRY!
3

Ldpe Hose Spiral Wrap

TECHNICAL DATA

Material: LDPE (Light-Density Polyethylene)
Temp: -50°C To + 100 °C
Colour: Black,
Approved: ROHS, CE, REACH,MSHA,

Applications and Benefits Black PE
  • Lightweight protective wrap
  • Provides cost-effective hose and cable protection
  • Operating temperature for the LDPE Material is 100 °C.
NOTE :

  • ALL OUTER AND INNER DIMENSIONS ARE NOMINAL
  • WALL THICKNESS TOLERANCE +/- 0.3 MM
  • PITCH TOLERANCE +/- 2.0 MM
ENQUIRY!
20

Sealing Slottex Plugs

SR 1007
Yellow Nylon 6

  • Double sealing ring on underside of flange provides positive sealing
  • Quick and easy to fit using screwdriver, spanner, socket or allen key
  • Can be tightened manually or with power tool
  • Head designed not to trap liquid
ENQUIRY!
