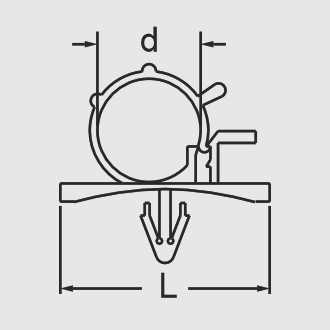

| Part Number | “Cable Diameter (mm) d” | Dimensions (mm) | Std Pack Qty |
|---|---|---|---|
| L | |||
| 460311 | 6-7 | 25 | 100 |
| 460312 | 7-8 | 25 | 100 |
| 460313 | 9-10 | 30 | 100 |
| 460314 | 12-14 | 30 | 100 |
| 460315 | 16-18 | 30 | 100 |

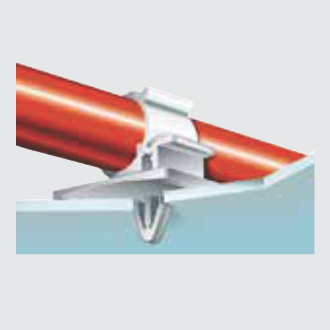

Push-In Cable Clamps
Push-In Cable Clamps SR 1786 Grey Nylon 6.6
- Easy one-push fit
- One size fits a range of cable diameters
- Flammability rating UL94 V2
- One standard panel hole diameter of 4.8mm
Related products
Standard Grommets
SR 1700/1701
SR 1700 Black PVC
- Protects wires and cables passing through panels
- SR 1701 Black Thermoplastic Rubber
- Resistant to most oils and greases
- Withstands temperatures from -40°C to +135°C
Flame-Retardant Polyolefin(UNIVERSAL) Heat Shrink Tubing
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
Features :
- UL and RoHS compliant
- Excellent electrical, physical and chemical properties
- Minimum shrink temperature: 75℃
- Fully shrink temperature: 120℃
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- High Flexibility
Diaphragm Grommets
SR 1705
Black PVC/TPE, RMS-262
- Thin central film can be pierced to allow a range of different-sized wires to pass through
