PG THREAD RANGE

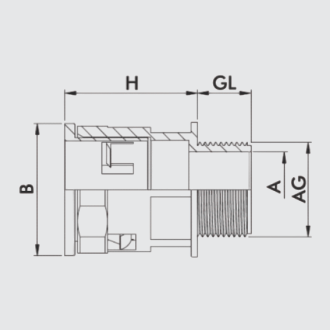

| PART NUMBER | THREAD AG MM. | SPIRAL DIAMETER MM | H (MM) | GL (MM) | A (MM) | B (MM) | SPQ IN MTRS | |
|---|---|---|---|---|---|---|---|---|
| BLACK | GRAY | |||||||
| RECG1-PG7-B | RECG1-PG7-G | PG29 | 6.5 X 10 | 26.0 | 11 | 6.9 | 18.7 | 100 |
| RECG2-PG7-B | RECG2-PG7-G | PG36 | 8.5 X12 | 26.0 | 11 | 8.2 | 20.7 | 100 |
| RECG-PG9-B | RECG-PG9-G | PG48 | 10 X 13 | 26.0 | 11 | 10.3 | 21.7 | 100 |
| RECG-PG11-B | RECG-PG11-G | PG7 | 12 X15.8 | 26.5 | 11 | 13.3 | 26.0 | 50 |
| RECG-PG13.5-B | RECG-PG13.5-G | PG7 | 14.2 X 18.4 | 31.0 | 11 | 15.3 | 28.0 | 50 |
| RECG-PG16-B | RECG-PG16-G | PG9 | 16.5 X 21.2 | 33.0 | 13 | 16.6 | 32.0 | 50 |
| RECG-PG21-B | RECG-PG21-G | PG11 | 23 X 28.4 | 39.0 | 16 | 22.3 | 39.5 | 50 |
| RECG-PG29-B | RECG-PG29-G | PG13.5 | 29 X 34.5 | 43.0 | 16 | 31.7 | 46.5 | 25 |
| RECG-PG36-B | RECG-PG36-G | PG16 | 36 X 42.5 | 45.5 | 16 | 40.5 | 55.5 | 25 |
| RECG-PG48-B | RECG-PG48-G | PG21 | 48 X 54.5 | 47.5 | 16 | 51.7 | 67.5 | 25 |
SPECIL SIZE PG THREAD RANGE
| RESCG-PG7-B | RESCG-PG7-B | PG13.5 | 10 X 13 | 26 | 11 | 8 | 21.7 | 100 |
| RESCG1-PG11-B | RESCG1-PG11-B | PG7 | 10 X 13 | 26 | 11 | 10.6 | 21.7 | 100 |
| RESCG1-PG13.5-B | RESCG1-PG13.5-B | PG11 | 10 X 13 | 26 | 11 | 10.6 | 21.7 | 100 |
| RESCG1-PG9-B | RESCG1-PG9-B | PG13.5 | 12 X 15.8 | 26.5 | 11 | 11.8 | 26 | 100 |
| RESCG2-PG13.5-B | RESCG2-PG13.5-B | PG9 | 12 X 15.8 | 26.5 | 11 | 13 | 26 | 100 |
| RESCG2-PG9-B | RESCG2-PG9-B | PG13.5 | 14.2 X 18.4 | 31 | 11 | 11.8 | 28 | 100 |
| RESCG2-PG11-B | RESCG2-PG11-B | PG9 | 14.2 X 18.4 | 31 | 11 | 13.8 | 28 | 100 |
| RESCG3-PG13.5-B | RESCG3-PG13.5-B | PG11 | 16.5 X 21.2 | 33 | 13 | 15.9 | 32 | 100 |
METRIC THREAD RANGE
| RECG1-M12-B | RECG1-M12-G | M40 X 1.5 | 6.5 X 10 | 26 | 11 | 6.9 | 18.7 | 100 |
| RECG2-M12-B | RECG2-M12-G | M20 X 1.5 | 8.5 X12 | 26 | 11 | 8.2 | 20.7 | 100 |
| RECG1-M16-B | RECG1-M16-G | M25 X 1.5 | 10 X 13 | 26 | 11 | 10.8 | 21.7 | 100 |
| RECG2-M16-B | REC2G-M16-G | M32 X 1.5 | 12 X15.8 | 26.5 | 11 | 10.9 | 26 | 50 |
| RECG1-M20-B | RECG1-M20-G | M16 X 1.5 | 14.2 X 18.4 | 31 | 11 | 14.7 | 28 | 50 |
| RECG2-M20-B | RECG2-M20-G | M16 X 1.5 | 16.5 X 21.2 | 33 | 13 | 15.2 | 32 | 50 |
| RECG-M25-B | RECG-M25-G | M20 X 1.5 | 23 X 28.4 | 39 | 16 | 18.7 | 39.5 | 50 |
| RECG-M32-B | RECG-M32-G | M12 X 1.5 | 29 X 34.5 | 43 | 16 | 25.7 | 46.5 | 25 |
| RECG-M40-B | RECG-M40-G | M12 X 1.5 | 36 X 42.5 | 45.5 | 16 | 32.7 | 55.5 | 25 |
| RECG-M63-B | RECG-M63-G | M63 X 1.5 | 48 X 54.5 | 47.5 | 16 | 51.4 | 67.5 | 25 |
SPECIL SIZE METRIC THREAD RANGE
| RESCG-M12-B | RESCG-M12-G | M20 X 1.5 | 10 X 13 | 26 | 11 | 8 | 21.7 | 100 |
| RESCG1-M20-B | RESCG1-M20-G | M20 X 1.5 | 10 X 13 | 26 | 11 | 10.5 | 21.7 | 100 |
| RESCG2-M20-B | RESCG2-M20-G | M50 X 1.5 | 12 X 15.8 | 26.5 | 11 | 13 | 26 | 100 |
| RESCG-M16-B | RESCG-M16-G | M16 X 1.5 | 14.2 X 18.4 | 31 | 11 | 10.3 | 28 | 100 |
| RESCG-M25-B | RESCG-M25-G | M25 X 1.5 | 16.5 X 21.2 | 33 | 13 | 18.6 | 32 | 100 |
| RESCG-M32-B | RESCG-M32-G | M32 X 1.5 | 23 X 28.4 | 39 | 16 | 26.8 | 39.5 | 100 |
| RESCG-M40-B | RESCG-M40-G | M40 X 1.5 | 29 X 34.5 | 43 | 16 | 32.6 | 46.5 | 100 |
| RESCG-M50-B | RESCG-M50-G | M50 X 1.5 | 36 X 42.5 | 45.5 | 16 | 40.2 | 55.5 | 100 |
| RESCG-M50-B | RESCG-M50-G | M12 X 1.5 | 48 X 54.5 | 47.5 | 16 | 43.1 | 67.5 | 100 |
