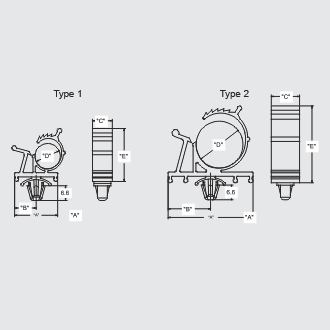

| Part Number | Type | Dimensions (mm) | Std Pack Qty | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| UL94V2, RMS-01 | UL94 V0, RMS-19 | “A” | “B” | “C” | “Holding Ø “D”” | “E” | “MountingHole Ø” | “Panel Thickness” | ||
| PAKKL-3140-01 | PAKKL-3140-19 | 1 | 19.1 | 9.7 | 8.9 | 7.9 – 10.2 | 23.8 | 6.35 | 0.8 – 1.5 | 100 |
| PAKKL-4756-01 | PAKKL-4756-19 | 1 | 31.5 | 15.7 | 10.2 | 11.9 – 14.3 | 29.8 | 6.35 | 0.8 – 1.5 | 100 |
| PAKKL-5775-01 | PAKKL-5775-19 | 2 | 38.1 | 19.1 | 12.7 | 14.7 – 19.1 | 34.5 | 6.35 | 0.8 – 1.5 | 100 |
Brass Nickel-Plated Cable Gland
Material : Brass Nickel-Plated
Lamellar Insert : PA 6
Sealing Ring :CR
Protection Class : NBR-Oz
Test Standard* : IP66/ IP68 – 5 bar/ IP69k
Temperature : UL 514B
Strain Relief : DIN EN 62444 Tab. 2A
O-Ring : -30 °C to +100 °C
