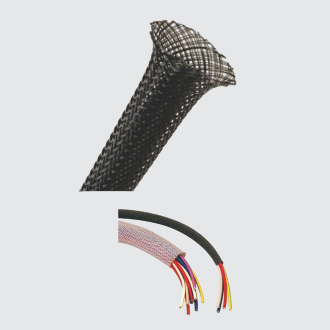

PET Expandable Braided Sleeving

TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife

Features :

Flexible & Light Weight
Excellent Noise suppression
Flame Retardant
High level abrasion Protection
Mechanical & Chemical Resistance
Oil Resistance
Halogen Free

CORE APPLICATIONS:

Body Auto wiring Harness
Instrumental Panel Harness
Engine Compartment Harness
Modular Wire Harness
Electrical Distribution System
Tubing

Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife

Flexible & Light Weight
Excellent Noise suppression
Flame Retardant
High level abrasion Protection
Mechanical & Chemical Resistance
Oil Resistance
Halogen Free
Body Auto wiring Harness
Instrumental Panel Harness
Engine Compartment Harness
Modular Wire Harness
Electrical Distribution System
Tubing

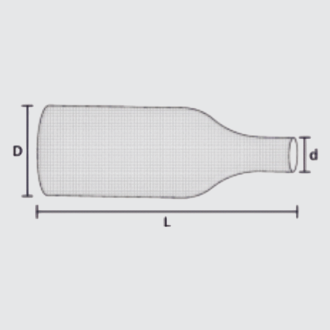

PART NUMBER	“Nominal Size Ф – d”	“Min. Expandability – D (mm)”	Thickness	SPQ
REBS-6	6 MM	11.1 MM	0.80mm ± 0.1mm	500 Mtrs
REBS-8	8 MM	12.7 MM	0.80mm ± 0.1mm	500 Mtrs
REBS-10	10 MM	12.7 MM	0.80mm ± 0.1mm	300 Mtrs
REBS-13	13 MM	15.9 MM	0.80mm ± 0.1mm	250 Mtrs
REBS-16	16 MM	19.1 MM	0.80mm ± 0.1mm	250 Mtrs
REBS-19	19 MM	28.6 MM	0.80mm ± 0.1mm	250 Mtrs
REBS-25	25 MM	31.8 MM	0.80mm ± 0.1mm	200 Mtrs
REBS-32	32 MM	38.1 MM	0.80mm ± 0.1mm	150 Mtrs
REBS-35	35 MM	41.3 MM	0.80mm ± 0.1mm	100 Mtrs
REBS-38	38 MM	57.2 MM	0.80mm ± 0.1mm	100 Mtrs
REBS-45	45 MM	63.5 MM	0.80mm ± 0.1mm	75 Mtrs
REBS-51	51 MM	76.2 MM	0.80mm ± 0.1mm	50 Mtrs
REBS-64	64 MM	76.2 MM	0.80mm ± 0.1mm	25 Mtrs

PA EXPANDABLE BRAIDED SLEEVING

PART NUMBER	NOMINAL SIZE F – d	MIN. EXPANDABILITY – D (mm)	THICKNESS	SPQ
RENBS-30	4 MM	45.0 MM	0.65mm ± 0.1mm	500 Mtrs
RENBS-38	6 MM	57.0 MM	0.65mm ± 0.1mm	500 Mtrs
RENBS-15	10 MM	23.0 MM	0.65mm ± 0.1mm	300 Mtrs
RENBS-20	12 MM	28.0 MM	0.65mm ± 0.1mm	250 Mtrs
RENBS-25	15 MM	35.0 MM	0.65mm ± 0.1mm	250 Mtrs
RENBS-40	20 MM	60.0 MM	0.65mm ± 0.1mm	250 Mtrs
RENBS-50	25 MM	75.0 MM	0.65mm ± 0.1mm	200 Mtrs
RENBS-8	30 MM	12.0 MM	0.65mm ± 0.1mm	100 Mtrs
RENBS-10	38 MM	15.0 MM	0.65mm ± 0.1mm	50 Mtrs
RENBS-12	40 MM	18.0 MM	0.65mm ± 0.1mm	50 Mtrs
RENBS-6	50 MM	9.0 MM	0.65mm ± 0.1mm	25 Mtrs
RENBS-4	8 MM	7.0 MM	0.65mm ± 0.1mm	25 Mtrs

Note:-
1)Maximum expansion ratio can be greater than value stated.
2) This is minimum guaranteed expansion. As the inside diameter is coming closer to the maximum expansion, the sleeving shrinks in length
3)Other diameters supplied upon request.
