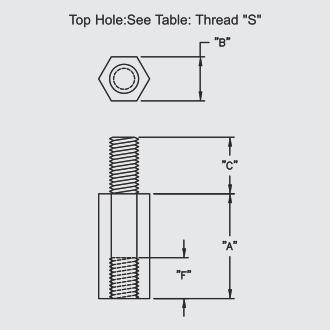

| PART NUMBER | Dimensions (mm) | STD PACK QTY | ||||
|---|---|---|---|---|---|---|
| “A” | “B” | “C” | “F” | “S”&”L” Threads | ||
| NTS-7 | 7 | 6 | 6.3 | 6 | M3 | 1000 |
| NTS-8 | 8 | 6 | 6.3 | 6 | M3 | 1000 |
| NTS-10 | 10 | 6 | 6 | 8 | M3 | 1000 |
| NTS-11 | 11 | 6 | 6.1 | 8 | M3 | 1000 |
| NTS-12 | 12.7 | 6 | 6.4 | 10 | M3 | 1000 |
| NTS-16 | 16 | 6 | 6.1 | 10 | M3 | 1000 |
| NTS-17.5 | 17.5 | 6 | 6 | 10 | M3 | 1000 |
| NTS-20 | 20 | 6 | 6.1 | 10 | M3 | 1000 |
| NTS-25 | 25 | 6 | 6.5 | 10 | M3 | 500 |
| NTS-15A | 15 | 6 | 6 | 10 | M4 | 1000 |
| NTS-19 | 19.1 | 8 | 5.5 | 8 | M4 | 1000 |
| NTS-37 | 37.1 | 8 | 5.5 | 8 | M4 | 200 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
