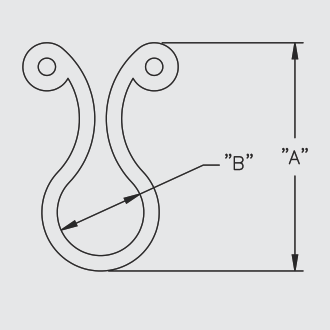

| Part Number | Dimensions (mm) | Std Pack Qty | |
|---|---|---|---|
| “A” | “B” Wire Bundle Ø | ||
| KL-125 | 12.2 | 3.2 – 3.8 | 1000 |
| KL-200 | 20.7 | 4.1 – 6.1 | 1000 |
| KL-250 | 23 | 5.1 – 7.6 | 1000 |
| KL-350 | 26.2 | 7.6 – 10.2 | 1000 |
| KL-450 | 30.5 | 10.2 – 12.7 | 1000 |
| KL-600 | 31.8 | 14 – 16.5 | 1000 |
| KL-750 | 38.6 | 17.8 – 20.3 | 1000 |
| KL-950 | 44.5 | 22.9 – 25.4 | 1000 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
