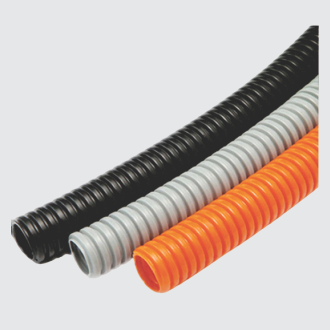

Flexible Spiral Conduit Pipe

Material :Polyamide PA6 & Polypropylene
OPERATING TEMP :-40°C +120°C, short term 150°C
Flammability class : UL94 V2, V0
Color : Black (RAL9005) Grey (RAL7031)
Approval : ROHS,CE, REACH, UL

Properties

High fatigue life
High impact strength
Halogen free
Self extinguishing
High abrasion restance
High UV resistance (Black)
Full-shrink packing

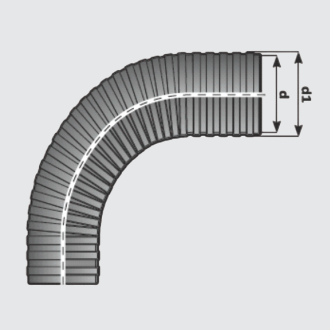

PART NUMBER		“Nominal Diameter”	d1MM	dMM	SPQ MTRS	MOQ in MTRS
Black	Gray	“Nominal Diameter”	d1MM	dMM	SPQ MTRS	MOQ in MTRS
RECP-7-B	RECP-7-G	7	10	6.5	100	100
RECP-8.5-B	RECP-8.5-G	8.5	12	8.5	100	100
RECP-9-B	RECP-9-G	9	13	10	100	100
RECP-11-B	RECP-11-G	11	15.8	12	50	100
RECP-13.5-B	RECP-13.5-G	13.5	18.4	14.2	50	100
RECP-16-B	RECP-16-G	16	21.2	16.5	50	100
RECP-21-B	RECP-21-G	21	28.4	23.5	50	100
RECP-29-B	RECP-29-G	29	34.5	29	25	100
RECP-36-B	RECP-36-G	36	42.5	36	25	100
RECP-48-B	RECP-48-G	48	54.5	48	25	100
