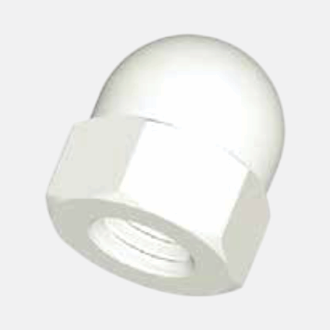

| PART NUMBER | Dimensions (mm) | STD PACK QTY | |||
|---|---|---|---|---|---|
| d | D | H | S | ||
| 0550010000VR | M3 x 0.5 | 6.0 | 3.0 | 5.5 | 1000 |
| NNE-1587-M4 | M4 x 0.7 | 8.0 | 3.2 | 7.0 | 1000 |
| 0550030000VR | M5 x 0.8 | 10.0 | 4.0 | 8.0 | 1000 |
| 0550040000VR | M6 x 1.0 | 12.0 | 5.0 | 10.0 | 1000 |
| 0550050000VR | M8 x 1.25 | 15.0 | 6.5 | 13.0 | 1000 |
| 0550060000VR | M10 x 1.5 | 18.0 | 8.0 | 17.0 | 1000 |
| 0550070000VR | M12 x 1.75 | 22.0 | 10.0 | 19.0 | 500 |
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
