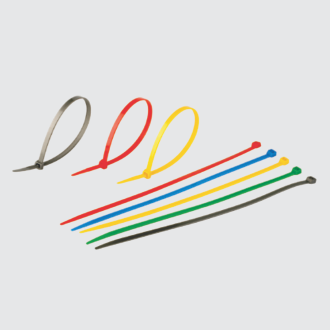

| PART NUMBER | Max Cable Bundle Dia (mm) | DIMENSIONS (mm) | STD PACK QTY | |||||
|---|---|---|---|---|---|---|---|---|
| RED | BLUE | GREEN | YELLOW | SILVER | LENGTH | WIDTH | ||
| 460177-R | 460177-B | 460177-G | 460177-Y | 460177-S | 25.00 | 100.00 | 2.5 | 100 |
| 460181-R | 460181-B | 460181-G | 460181-Y | 460181-S | 55.00 | 203.00 | 2.5 | 100 |
| 460184-R | 460184-B | 460184-G | 460184-Y | 460184-S | 39.00 | 150.00 | 3.6 | 100 |
| 460187-R | 460187-B | 460187-G | 460187-Y | 460187-S | 74.00 | 250.00 | 3.6 | 100 |
| 460227-R | 460227-B | 460227-G | 460227-Y | 460227-S | 55.00 | 203.00 | 4.6 | 100 |
| 460201-R | 460201-B | 460201-G | 460201-Y | 460201-S | 102.00 | 368.00 | 4.8 | 100 |
| 460230-R | 460230-B | 460230-G | 460230-Y | 460230-S | 85.00 | 300.00 | 4.8 | 100 |
| 461188-R | 461188-B | 461188-G | 461188-Y | 461188-S | 110.00 | 380.00 | 7.6 | 100 |
Pg Nylon Cable Gland
TECHNICAL DATA
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
- Locknut and sealing washer available separately
