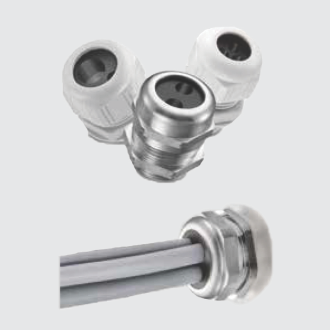

| PART NO. | THREAD | CABLE RANGE |
|---|---|---|
| RESI-817.1216.2 | M 12 x 1,5 | 2 x 1,6 |
| RESI- 817.1202.4 | M 12 x 1,5 | 4 x 2 |
| RESI- 817.1604.2 | M 16 x 1,5 | 2 x 4 |
| RESI- 817.1645.2 | M 16 x 1,5 | 2 x 4,5 |
| RESI- 817.1605.2 | M 16 x 1,5 | 2 x 5 |
| RESI- 817.1604.3 | M 16 x 1,5 | 3 x 4 |
| RESI- 817.1635.4 | M 16 x 1,5 | 4 x 3,5 |
| RESI- 817.2004.2 | M 20 x 1,5 | 2 x 4 |
| RESI- 817.2045.2 | M 20 x 1,5 | 2 x 4,5 |
| RESI- 817.2005.2 | M 20 x 1,5 | 2 x 5 |
| RESI- 817.2006.2 | M 20 x 1,5 | 2 x 6 |
| RESI- 817.2004.3 | M 20 x 1,5 | 3 x 4 |
| RESI- 817.2005.3 | M 20 x 1,5 | 3 x 5 |
| RESI- 817.2006.3 | M 20 x 1,5 | 3 x 6 |
| RESI- 817.2065.3 | M 20 x 1,5 | 3 x 6,5 |
| RESI- 817.2004.4 | M 20 x 1,5 | 4 x 4 |
| RESI- 817.2005.4 | M 20 x 1,5 | 4 x 5 |
| RESI- 817.2004.5 | M 20 x 1,5 | 5 x 4 |
| RESI- 817.2512.2 | M 25 x 1,5 | 1 x 5 + 1 x 12 |
| RESI- 817.2507.2 | M 25 x 1,5 | 2 x 7 |
| RESI- 817.2508.2 | M 25 x 1,5 | 2 x 8 |
| RESI- 817.2509.2 | M 25 x 1,5 | 2 x 9 |
| RESI- 817.2507.3 | M 25 x 1,5 | 3 x 7 |
| RESI- 817.2508.3 | M 25 x 1,5 | 3 x 8 |
| RESI- 817.2507.4 | M 25 x 1,5 | 4 x 7 |
| RESI- 817.3208.2 | M 32 x 1,5 | 2 x 8 |
| RESI- 817.3208.3 | M 32 x 1,5 | 3 x 8 |
| RESI- 817.3207.4 | M 32 x 1,5 | 4 x 7 |
| RESI- 817.3208.4 | M 32 x 1,5 | 4 x 8 |
| RESI- 817.3285.4 | M 32 x 1,5 | 4 x 8,5 |
| RESI- 817.3204.6 | M 32 x 1,5 | 6 x 4 |
| RESI- 817.4010.4 | M 40 x 1,5 | 4 x 10 |
| RESI- 817.4085.5 | M 40 x 1,5 | 5 x 8,5 |
| RESI- 817.4075.6 | M 40 x 1,5 | 6 x 7,5 |
| RESI- 817.4065.8 | M 40 x 1,5 | 8 x 6,5 |
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
