maximum panel thickness

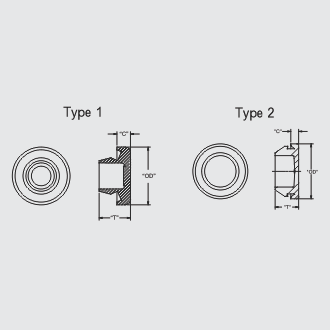

| PART NUMBER | TYPE | PANEL HOLE Ø REF. | PANEL THICKNESS | “OD” | “T” | “C” | MATERIAL | STD PACK QTY |
|---|---|---|---|---|---|---|---|---|
| BP-16230 | 1 | 10 | 0.8 – 2 | 19.3 | 10.9 | 5 | RMS-262 | 1000 |
| BP-16231 | 1 | 12 | 0.8 – 2 | 21 | 11.4 | 5 | RMS-262 | 1000 |
| BP-16232 | 1 | 14 | 0.8 – 2 | 23 | 11.4 | 5 | RMS-262 | 1000 |
| BP-16234 | 1 | 18 | 0.8 – 2 | 27 | 11.4 | 5 | RMS-262 | 1000 |
| BP-16236 | 1 | 22 | 0.8 – 2 | 31.2 | 10.9 | 4.5 | RMS-262 | 1000 |
| BP-3 | 2 | 22 | 1.6 – 3 | 28 | 12 | 4 | RMS-168 | 1000 |
| BP-4 | 2 | 26.5 | 0.8 – 2 | 32.5 | 12 | 4 | RMS-168 | 1000 |
| BP-16238 | 1 | 30 | 0.8 – 2 | 39.4 | 10.7 | 4.25 | RMS-262 | 1000 |
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
SR 1785
Nylon 6.6
