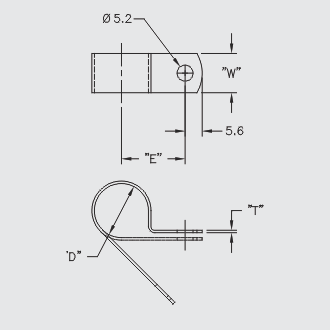

| Part Number | Dimensions (mm) | Std Pack Qty | |||
|---|---|---|---|---|---|
| “D” Holding Dia. | “E” | “T” | “W” | ||
| AL2 | 3.2 | 11.7 | 0.8 | 9.5 | 1000 |
| AL3 | 4.8 | 12.7 | 0.8 | 9.5 | 1000 |
| AL4 | 6.4 | 13.5 | 0.8 | 9.5 | 1000 |
| AL5 | 7.9 | 14.2 | 0.8 | 9.5 | 1000 |
| AL6 | 9.5 | 15 | 0.8 | 9.5 | 1000 |
| AL7 | 11.1 | 15.7 | 0.8 | 9.5 | 1000 |
| AL8 | 12.7 | 16.5 | 0.8 | 9.5 | 1000 |
| AL9 | 14.3 | 19.1 | 0.8 | 9.5 | 1000 |
| AL10 | 15.9 | 19.8 | 0.8 | 9.5 | 1000 |
| AL11 | 17.5 | 20.6 | 1.6 | 12.7 | 500 |
| AL12 | 19.1 | 21.3 | 1.6 | 12.7 | 500 |
| AL14 | 22.2 | 22.9 | 1.6 | 12.7 | 500 |
| AL16 | 25.4 | 24.4 | 1.6 | 12.7 | 500 |
| AL18 | 28.6 | 26.7 | 1.6 | 12.7 | 500 |
Related products
Silicone Coated Fiberglass Sleeving
TECHNICAL DATA
Material : fiberglass Multi filament and silicone elastomer
Thermal class : “H” Class
Thermal temp :-60°C to +180°C (Peak +200°C)
Sizes : 0.50MM to 50mm
Break down volt : 1.5kv,4kv,7kv
Flammability : UL 1441 – VW–1 (UL Grade–A)
Expandability : 1:2 (As per Customer requirement)
Color : Natural & Black, Other Colors on request
Shelf life : More than 25 years
Approval : ROHS, UL, CE, REACH
Features :
|
Applications :
|
Flexible Spiral Conduit Pipe
Material :Polyamide PA6 & Polypropylene
OPERATING TEMP :-40°C +120°C, short term 150°C
Flammability class : UL94 V2, V0
Color : Black (RAL9005) Grey (RAL7031)
Approval : ROHS,CE, REACH, UL
Properties
- High fatigue life
- High impact strength
- Halogen free
- Self extinguishing
- High abrasion restance
- High UV resistance (Black)
- Full-shrink packing
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Pg Nylon Cable Gland
TECHNICAL DATA
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
- Locknut and sealing washer available separately
Flame-Retardant Polyolefin(UNIVERSAL) Heat Shrink Tubing
Business Type: Manufacturer, Supplier
Material: Polyolefin
Color: Available in Many Colors
Country of Origin: India
Shrink Ratio: 2:1, 3:1
Thermal Temp.: -55°C to +125°C
Sizes: 0.80MM to 180mm
Flammability: UL1581 – VW–1, V0
Approval: ROHS, UL, CE, REACH
Features :
- UL and RoHS compliant
- Excellent electrical, physical and chemical properties
- Minimum shrink temperature: 75℃
- Fully shrink temperature: 120℃
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- High Flexibility
