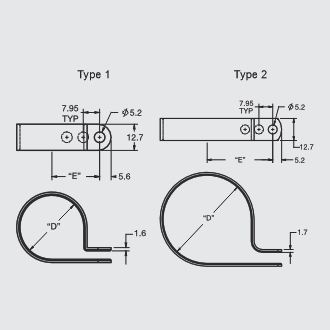

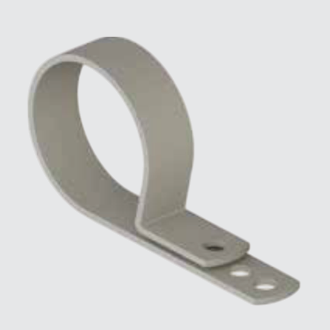

| Part Number | Type | Dimensions (mm) | Std Pack Qty | ||||
|---|---|---|---|---|---|---|---|
| “Natural UL94 V2 Nylon 6/6, RMS-01” | “Black UL94 V2 Nylon 6/6, RMS-01” | “E” | “D” Holding Ø | ||||
| Inside Hole | Center Hole | Outside Hole | |||||
| N-20B | N-20B-BK | 1 | 23 | 25.4 | 28.6 | 30.2 | 500 |
| N-24B | N-24B-BK | 1 | 26.2 | 31.8 | 34.9 | 37.3 | 500 |
| N-32B | N-32B-BK | 2 | 36.9 | 44.5 | 47.6 | 50.8 | 500 |
PET Expandable Braided Sleeving
TECHNICAL DATA
Material : PET Polyester and PA Nylon Monofilament
MONOFILAMENT : PET – 0.25mm & PA – 0.38mm
Working Temp : -70°C to +150°C
Size : 6mm to 65mm
Thermal Class : Class-F
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
Features :
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
CORE APPLICATIONS:
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
Material : PA Nylon Monofilament
MONOFILAMENT : PA6.6 – 0.26mm
Working Temp : -40°C to +150°C
Size : 4mm to 50mm
Flommobilty : Flame Rrtardant
EXPANDABILITY : 1:2 and 1:3 (As per Customer req.)
Color : Black, Other Colors on request
Approval : ROHS,Reach, CE
Cuting Tool : HOT Knife
- Flexible & Light Weight
- Excellent Noise suppression
- Flame Retardant
- High level abrasion Protection
- Mechanical & Chemical Resistance
- Oil Resistance
- Halogen Free
- Body Auto wiring Harness
- Instrumental Panel Harness
- Engine Compartment Harness
- Modular Wire Harness
- Electrical Distribution System
- Tubing
