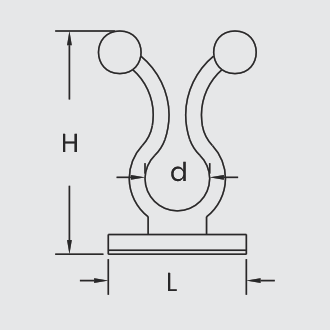

| Part Number | “Cable BundleDia (mm)” | Dimensions (mm) | Std Pack Qty | ||
|---|---|---|---|---|---|
| d | H | L | |||
| 460347 | 7-10 | 7.9 | 27.5 | 17.4 | 100 NOS |
| 460348 | 10-15 | 14.8 | 35.2 | 22.0 | 100 NOS |
| 460349 | 15-20 | 20.6 | 40.0 | 25.5 | 100 NOS |
SR 1705
Black PVC/TPE, RMS-262
TECHNICAL DATA
Material : Polyester Multifilament and PET Monofilament -0.22mm
Working Temp : -70°C to +150°C
Size : 5.0mm to 38mm
OVER LAP : 25% and 50%
Color : Black,
Approval : ROHS,Reach, CE
Features :
|
Core Applications :
|
Material : Brass Nickel-Plated
Lamellar Insert : PA 6
Sealing Ring :CR
Protection Class : NBR-Oz
Test Standard* : IP66/ IP68 – 5 bar/ IP69k
Temperature : UL 514B
Strain Relief : DIN EN 62444 Tab. 2A
O-Ring : -30 °C to +100 °C
Material : Nylon 6/6
OPERATING TEMP : -30°C to +100°C (+150°C – Short Term)
Thread : PG Standard Mounting Thread & Long Mounting Thread
Flammability : UL94 V-2, UL94 V0
Color : Black and Grey Other Colours on Request
Protection Rating : IP68
Approval : ROHS, UL, CE, REACH,
